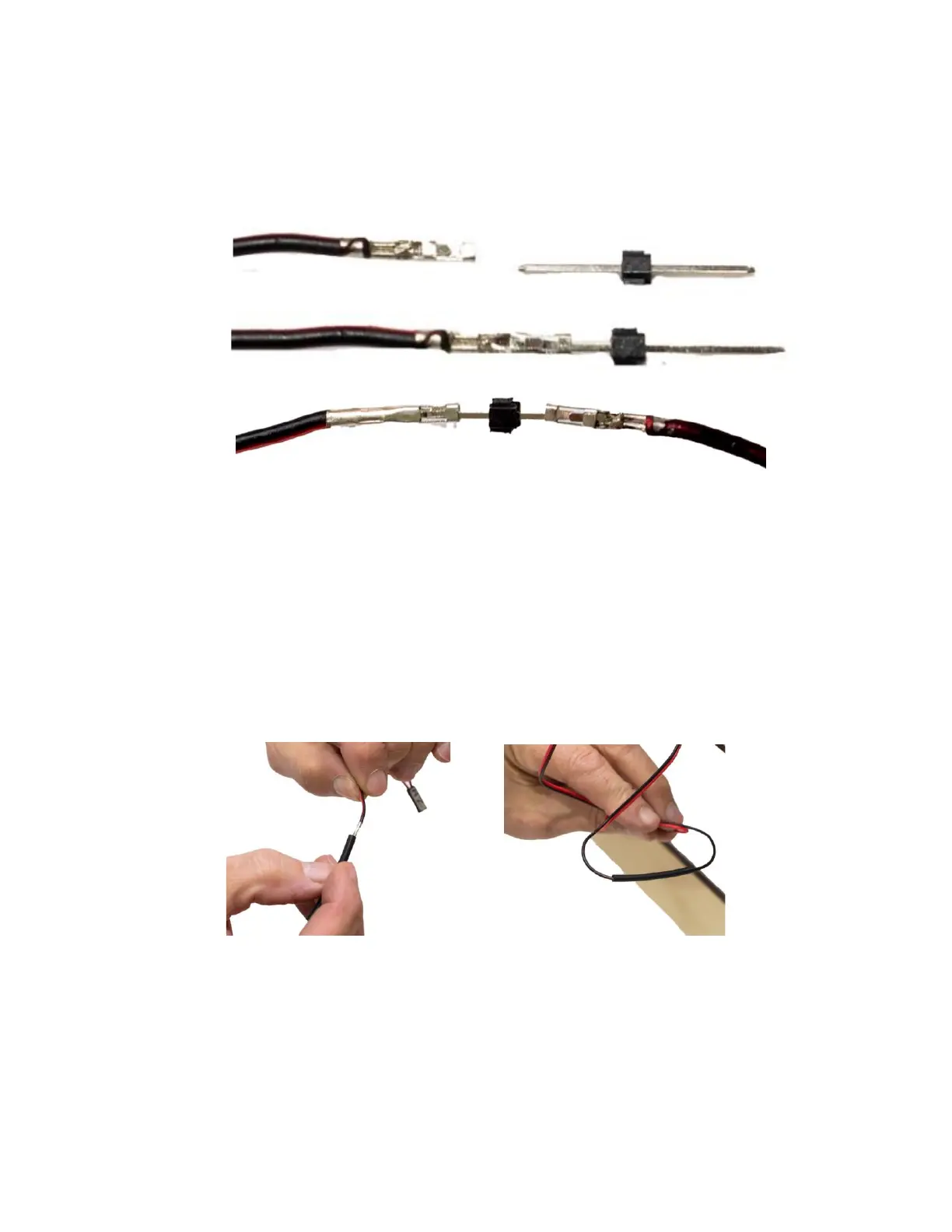

9e Connect the black Z axis Home Switch Wire to the
black X2 Home Switch Wire using the Pin Connecter
as shown.
9f Cover the splice with the heat shrink tubing. Using a
lighter or heat gun, carefully heat the tubing so that it
shrinks securely around the pin connector as shown.
Insert the remaining wire into the black 2-pin
connector.
