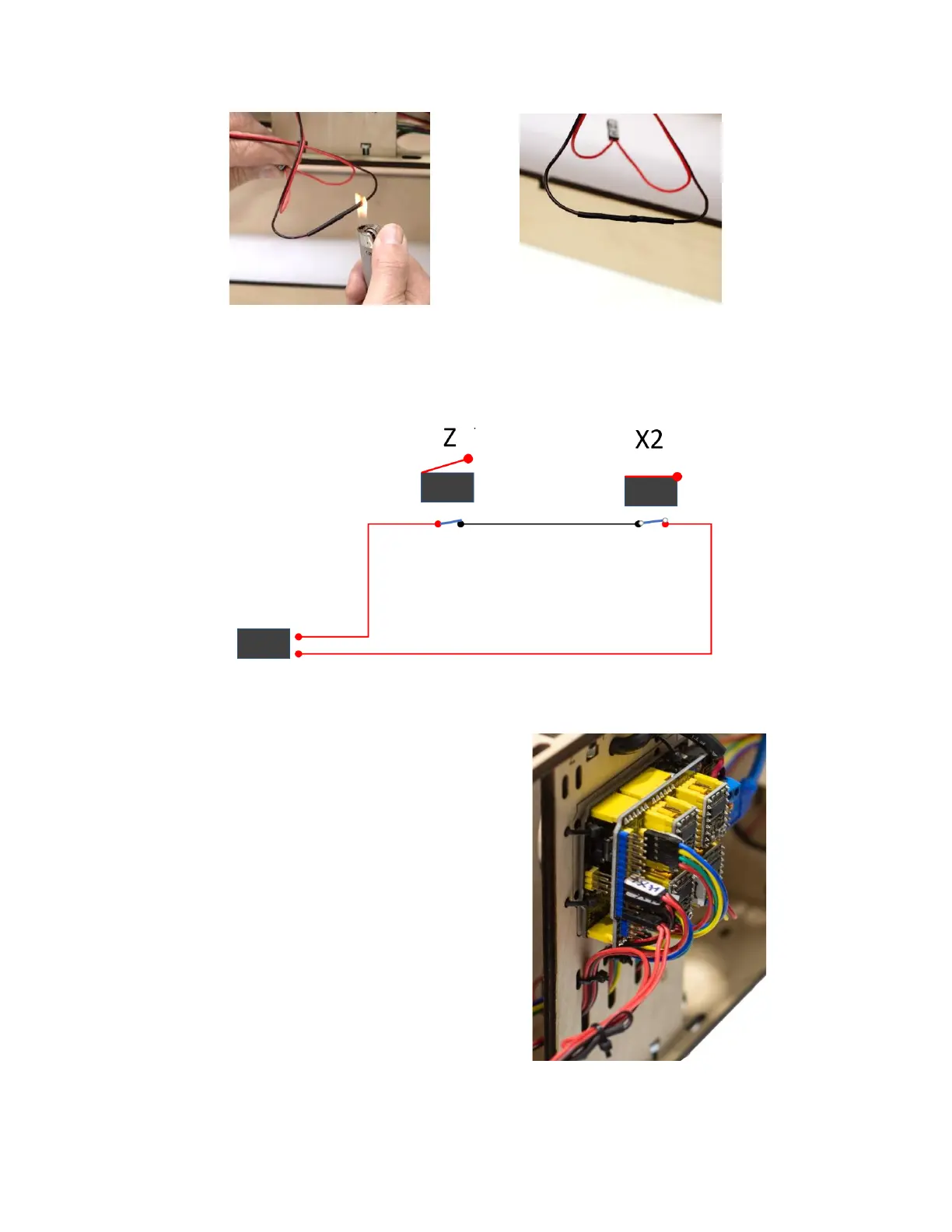

Below is a schematic of the wiring of the self-squaring gantry. Note the black
line represents the spice connect the Z and X2 black wires. Both red wires
are connected to the controller via a DuPont connector to the Z+ pin
terminal.
9g Plug the connector to
the Z+ pin terminal on
the controller and
secure the spliced wires
with a Zip Tie.
