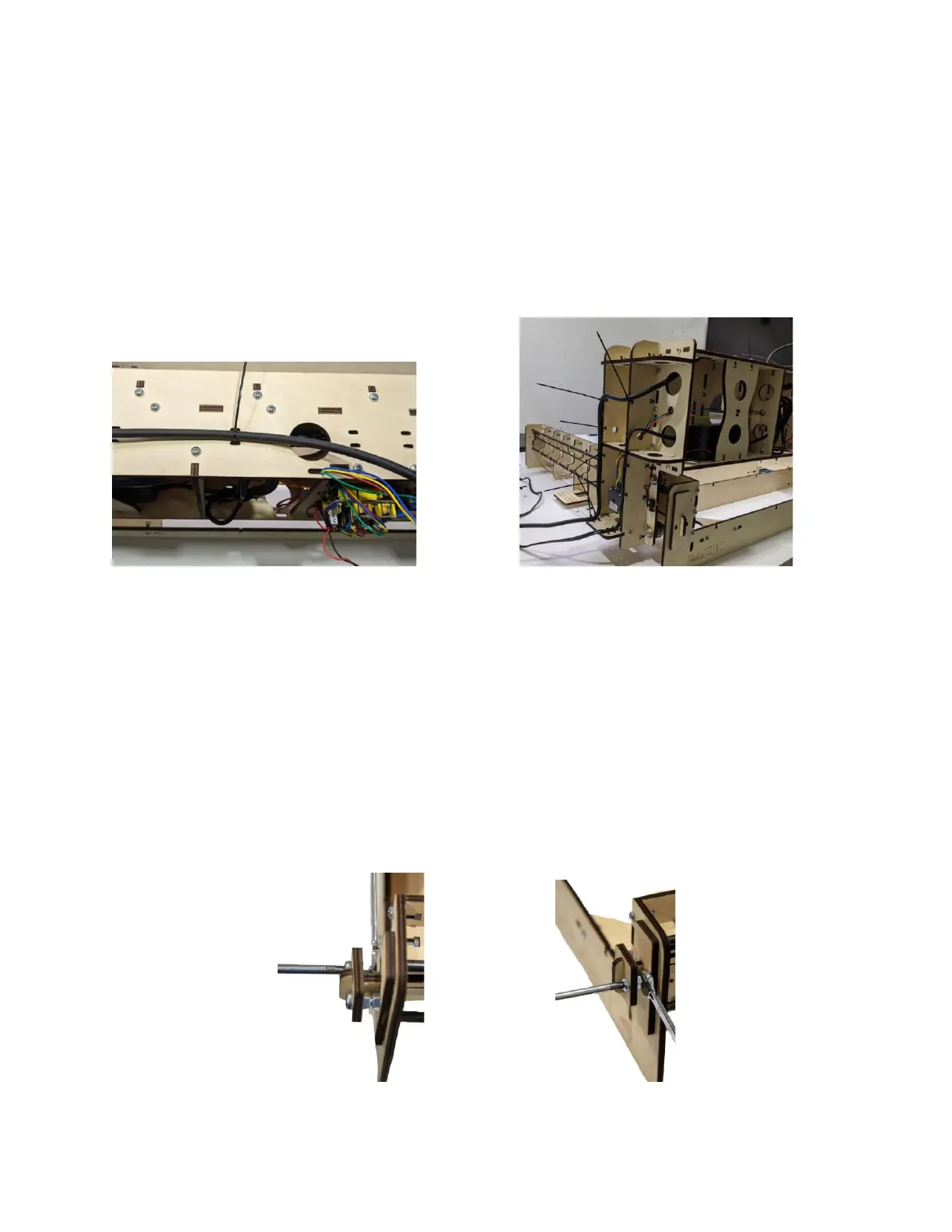

10g Final Wire Management. Zip Tie the Power Cord to
the side of the Gantry as shown. Then tie them
together and secure them to the Gantry Lower Side
Brace as shown. In the same way tie the USB Cord to
its Wire Harness Support as shown.
Step 11 Tighten the X1 and X2 Belts. Make sure the Nut closest to the
Belt Adjusting Plate is tight. Using a 10mm wrench, hold the
Adjustment Nut and turn the Machine Screw to tighten the Belt.
Be sure to adjust both Screws the same amount until the Belt is
tight.
