Repeat these steps to tighten the X2 Belt.
Step 12 Tighten the Y Belt

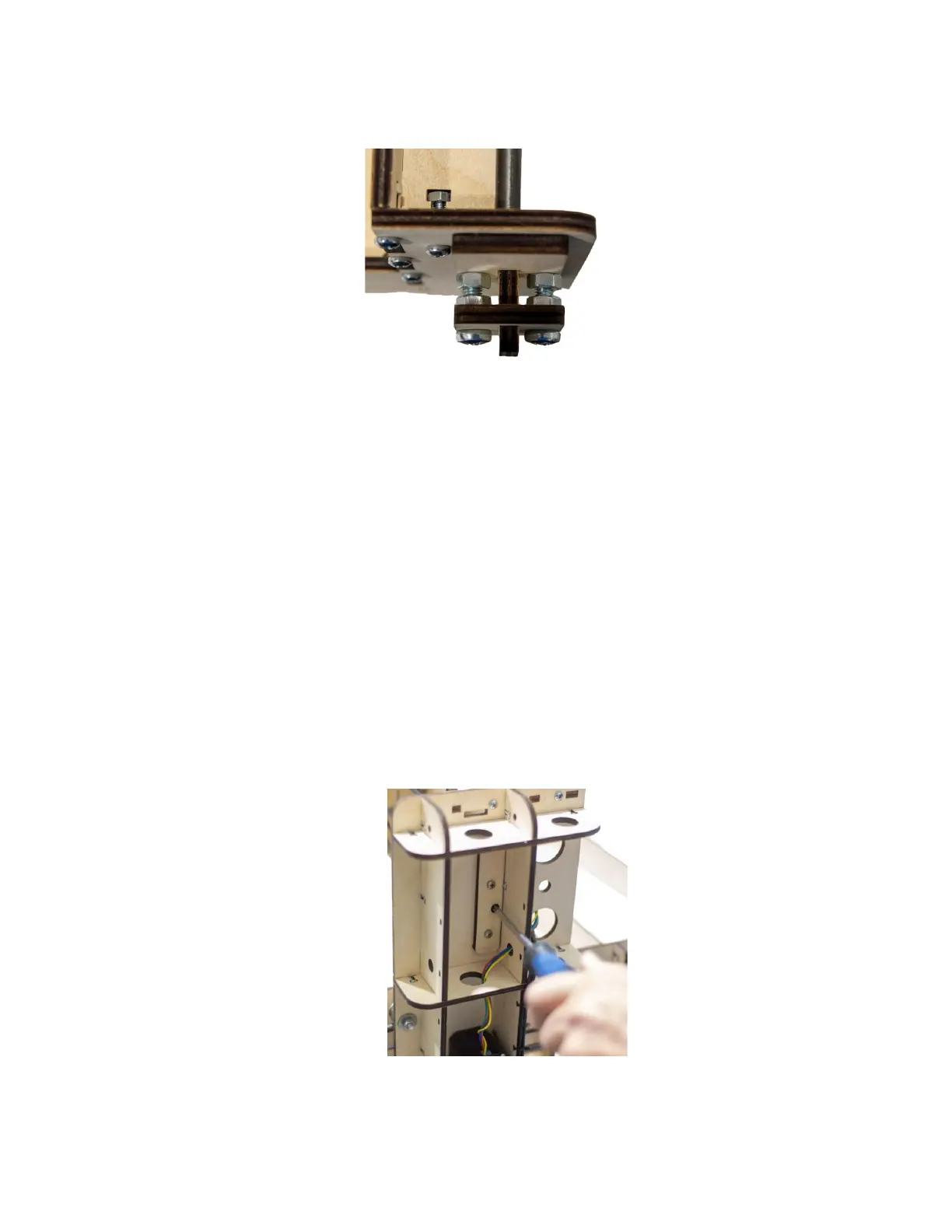

12a Insert the M4 x 30 Machine Screw through the large
hole in the Y Rail Stop as shown. Thread the Screw
into the Nut of the Y Adjuster Assembly. Tighten the
Belt by turning the Screw clockwise.
To Next Page
