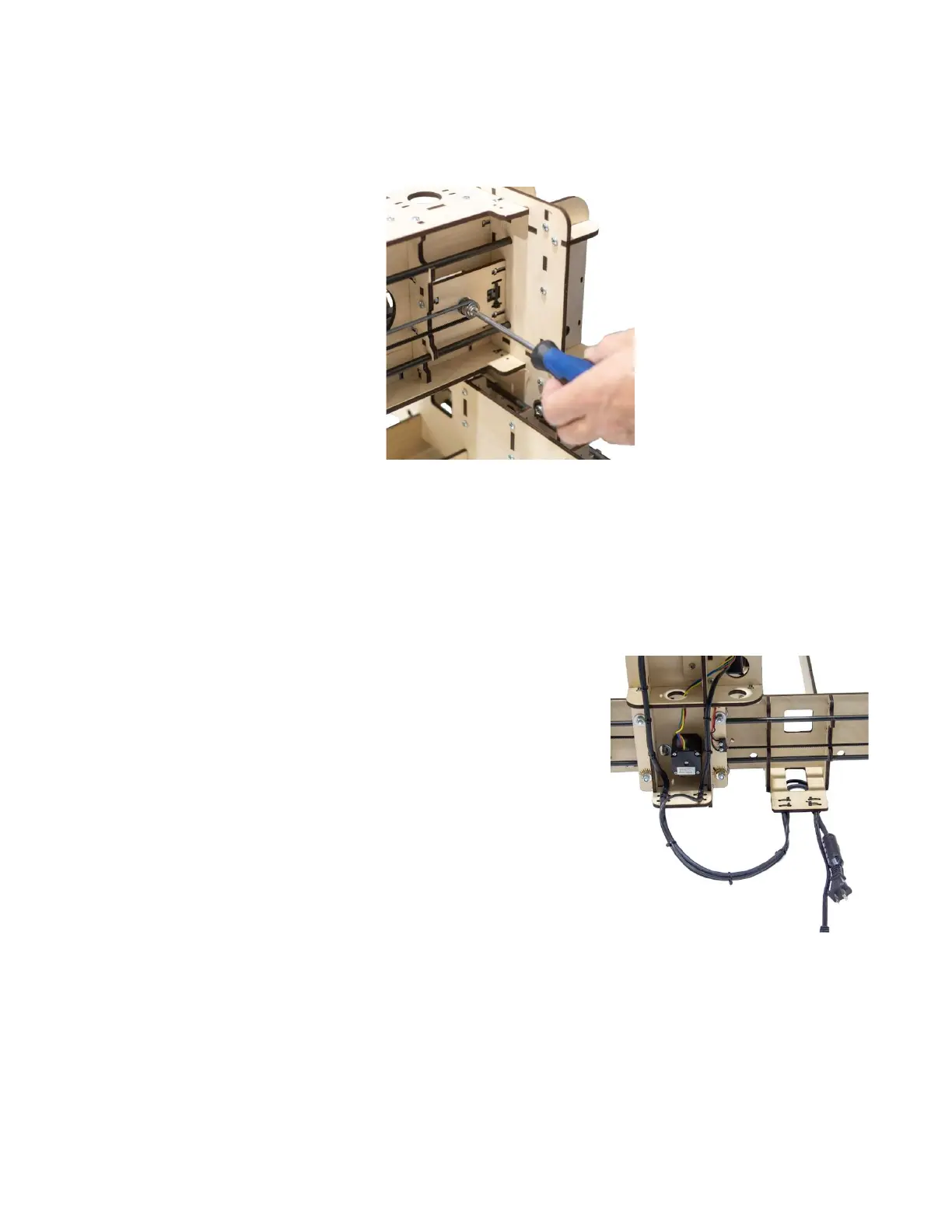

12b Tighten the Screw on the Idler Pulley to secure Belt
tension as shown
Make sure the Nut closest to the Belt Adjusting Plate is tight. Using a 10mm
wrench, hold the adjustment Nut and turn the Machine Screw to tighten
the Belt. Be sure to adjust both Screws the same amount until the Belt is
tight.
Step 13 Secure Power and USB Cords
13a Secure the Power Cords to the
Wire Harness Support with four
Zip Ties as shown
13b Secure the USB cord to the Wire
Harness Support with four Zip Ties as shown.
To Next Page
