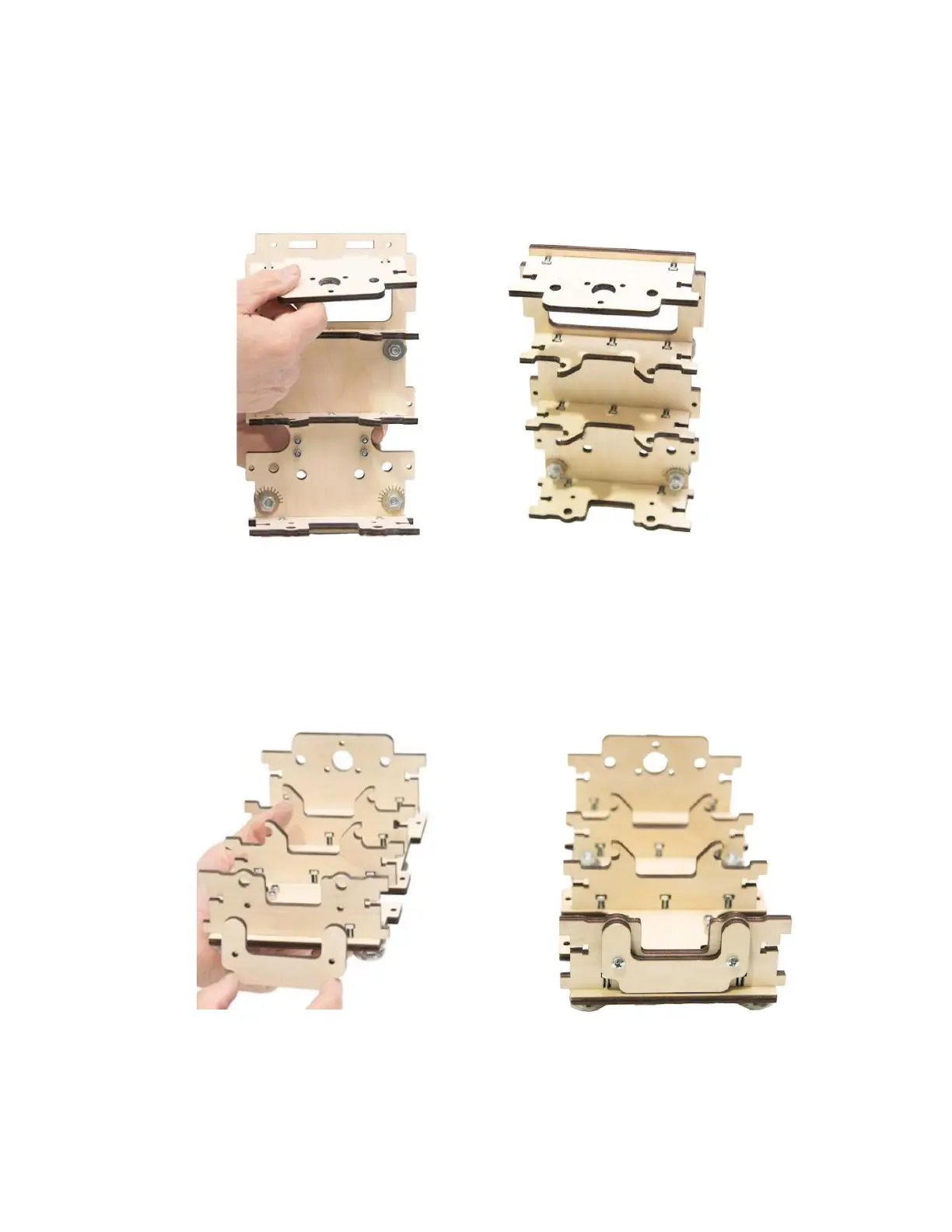

Step 6 Attach the Rail Top Support (Y2) to the Y Frame Assembly with
two M4 x 16 Machine Screws and Nuts as shown.
Step 7 Attach the Z Rail Stop (Y7) to the Y Frame Assembly with two
M4 x 16 Machine Screws and Lock Nuts as shown.
