37

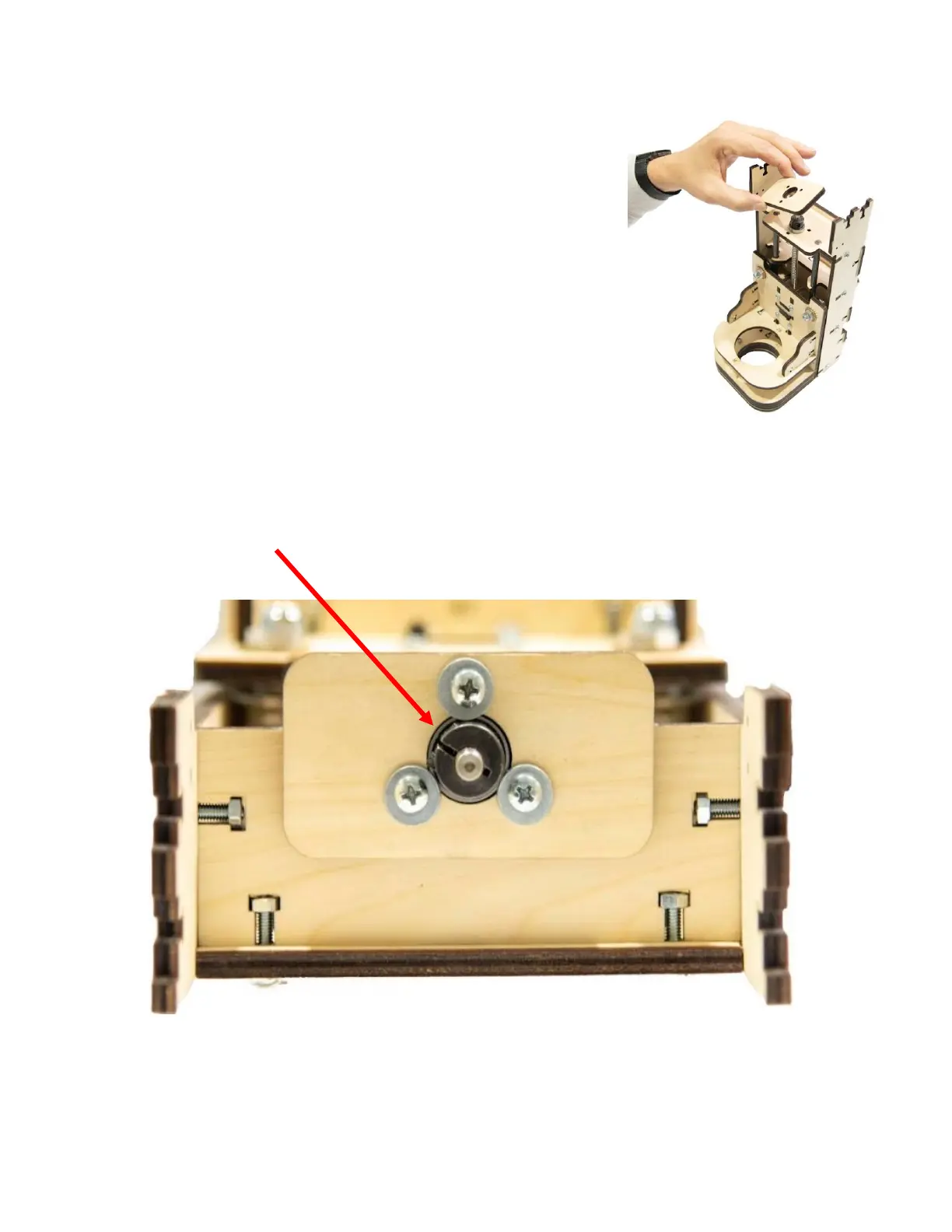

Step 8 Place the Bearing Retainer Plate (Y3)
over the Bearing and secure in place
with three M4 x 16 Machine Screws,
Bearing Retainer Washers and Lock
Nuts. [NOTE: Washers must be placed
so that they cover the Outer Bearing
Race to secure it in place as shown.
Once installed, spin the ACME Rod to
confirm the Washers do not interfere
with the rotation of the Locking Nut.
