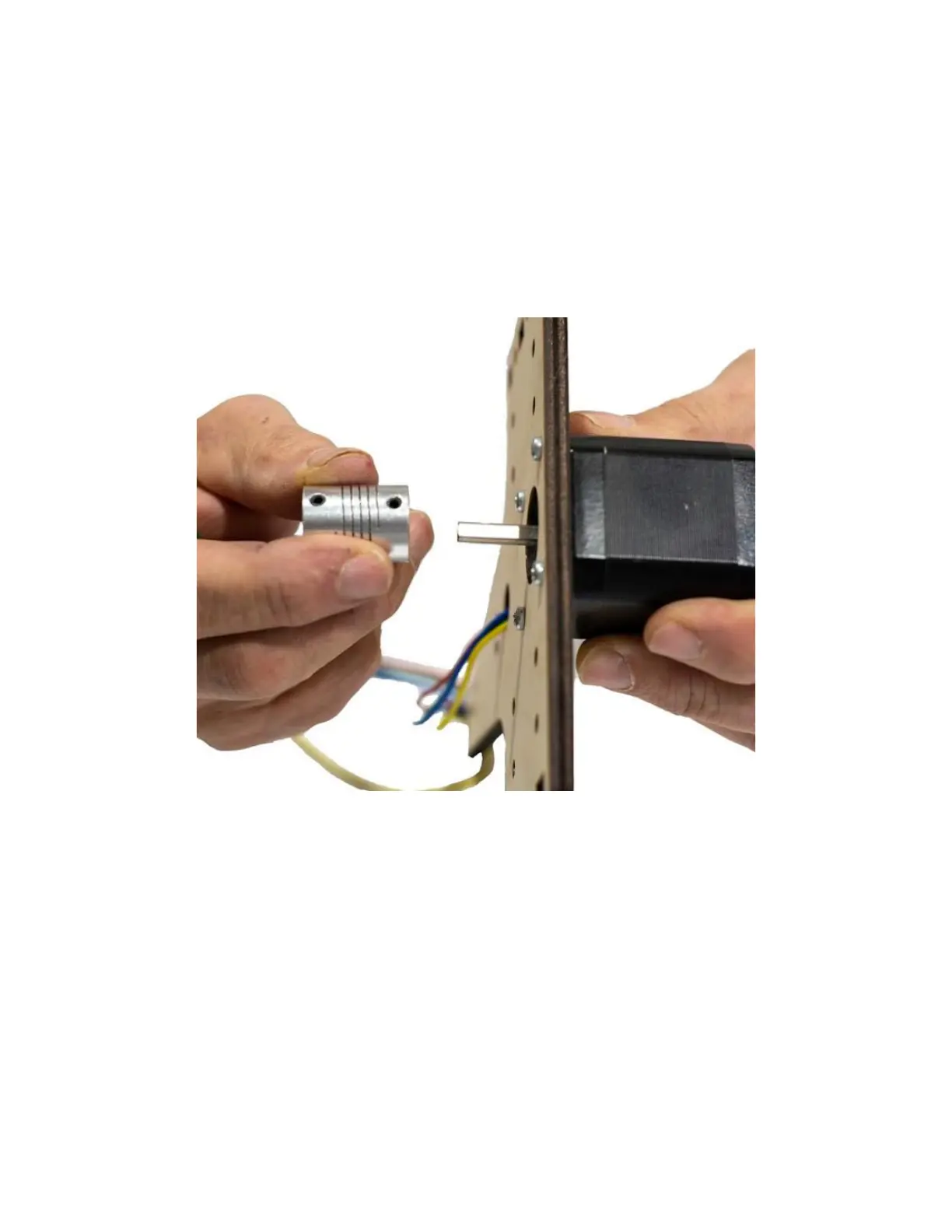

Step 9 Slide the Aluminum Helical Coupler(ZD5) over the shaft of the
Stepper Motor. Make sure the Set Screw fits against the flat of
the Stepper Motor Shaft. Gently snug the Set Screw to keep it
from rotating off the flat but loose enough so that it can slide
up and down.
