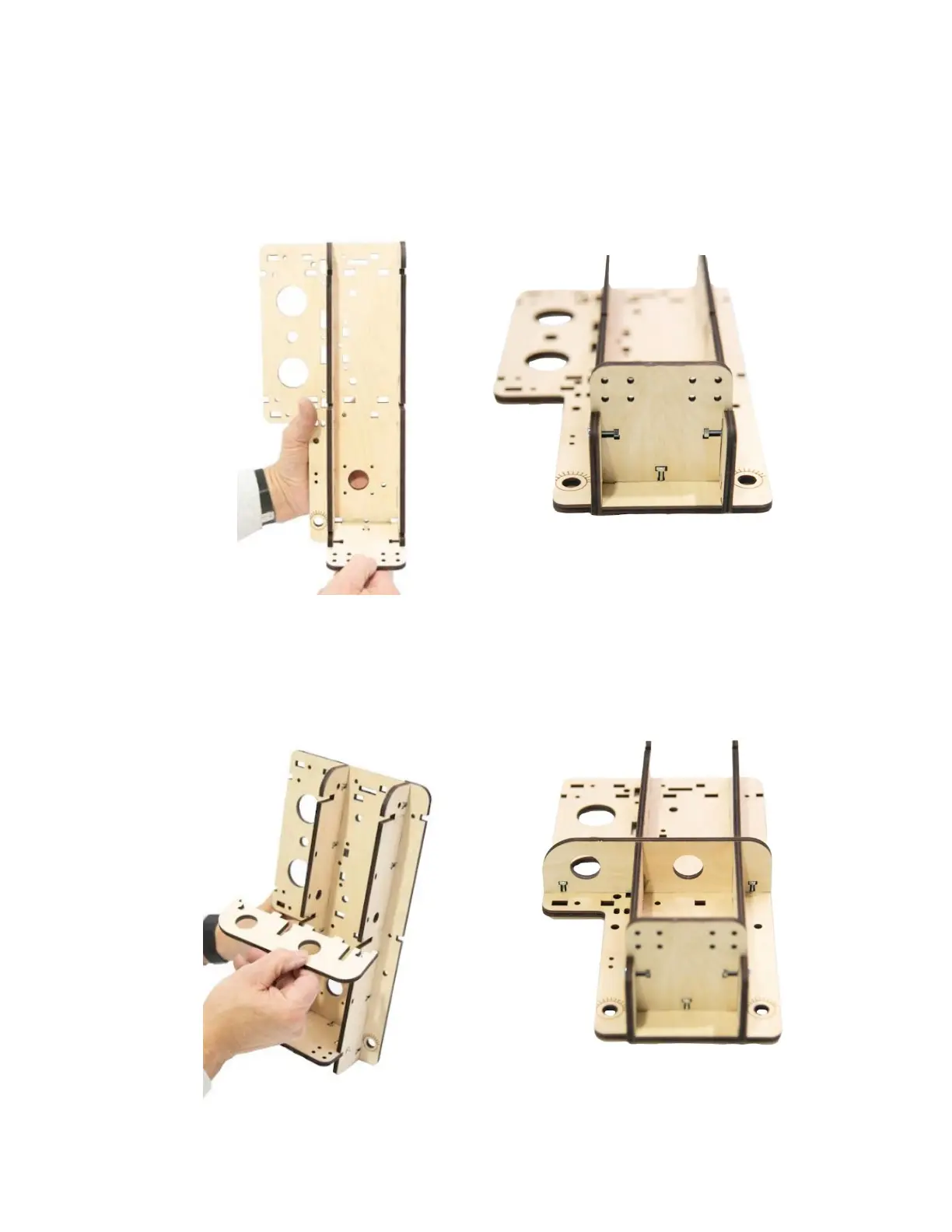

Step 3 Align and insert the tab and slots of the Gantry Side Lower
Brace (G14) and secure with three M4 x 16 Machine Screws and
Nuts as shown.
Step 4 Align and insert the tab and slots of one Gantry Cross Brace
(G3) as shown and secure in place with two M4 x 16 Machine
Screws and Nuts.
