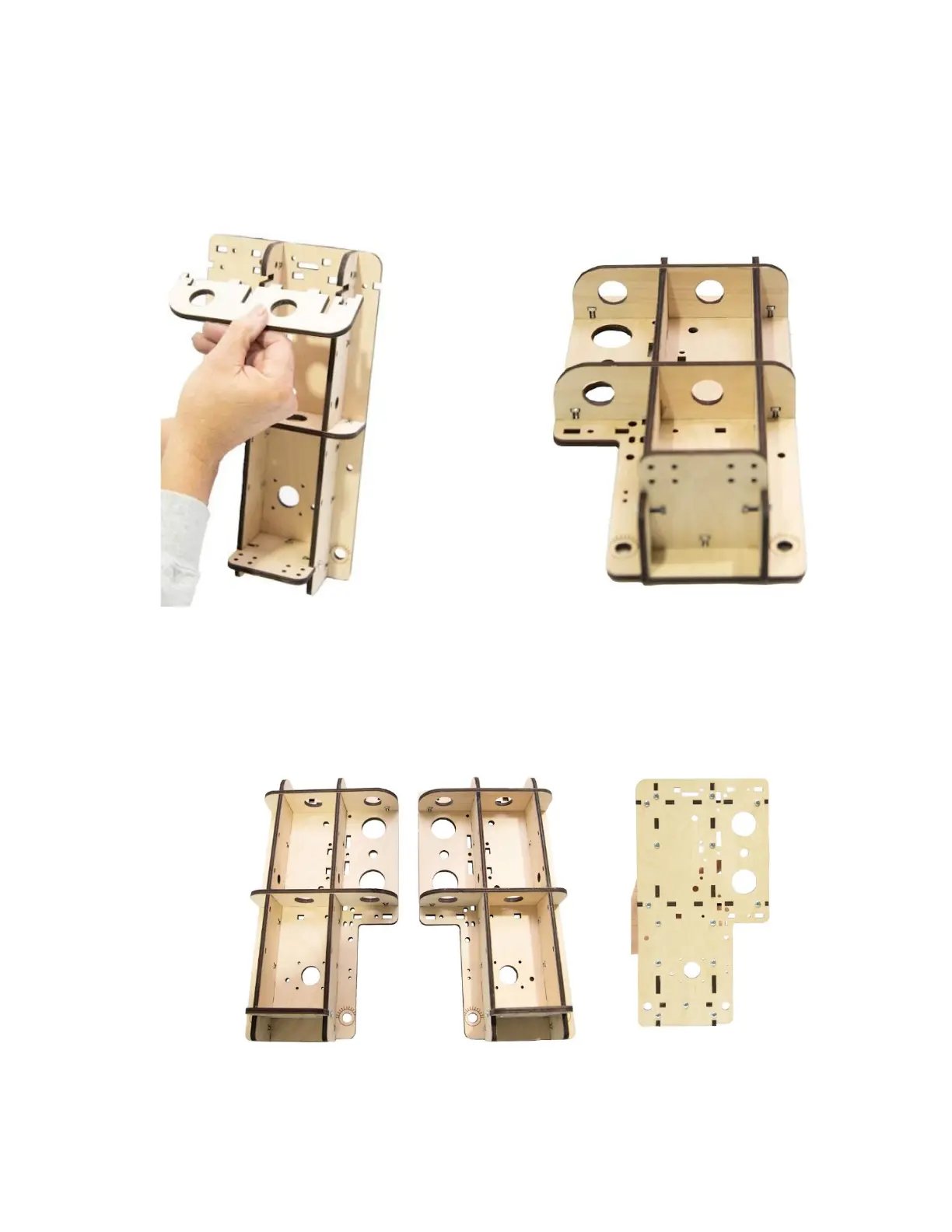

Step 5 Align and insert the tab and slots of the second Gantry Cross
Brace (G3) as shown and secure in place with two M4 x 16
Machine Screws and Nuts.
Step 6 Repeat process to assemble second side. [NOTE: Both sides will
mirror each other as shown].
