52

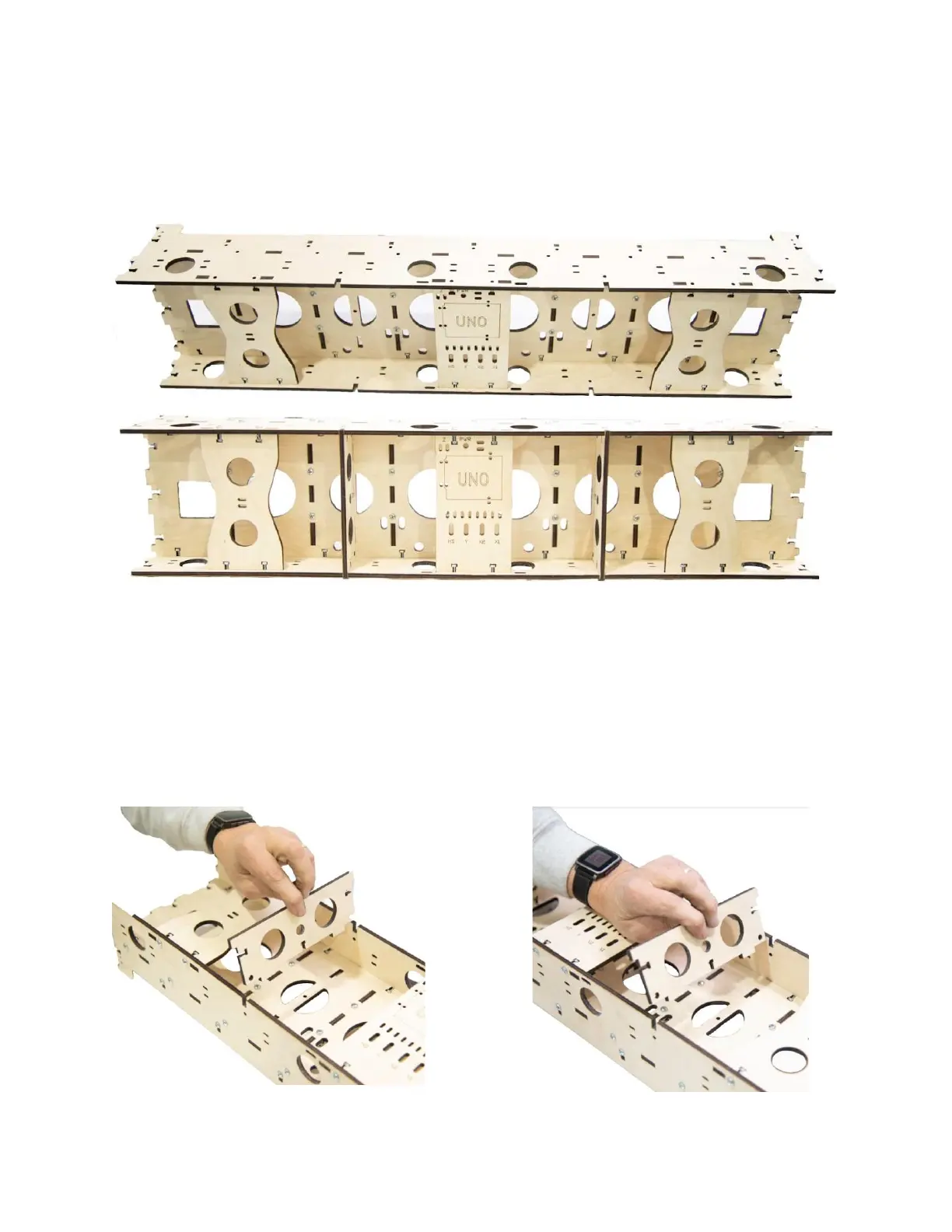

Step 11 Align and insert the tabs of the Gantry Frame Assembly into the
slots of the Gantry Top Brace (G9) and secure with twenty-one
M4 x 16 Machine Screws and Nuts as shown.
Step 12 Align and insert the tabs of the Gantry Back Brace (G7) into the
slots of the Gantry Frame Assembly and secure with three M4 x
16 Machine Screws and Nuts as shown. Repeat to install the
second Brace.
