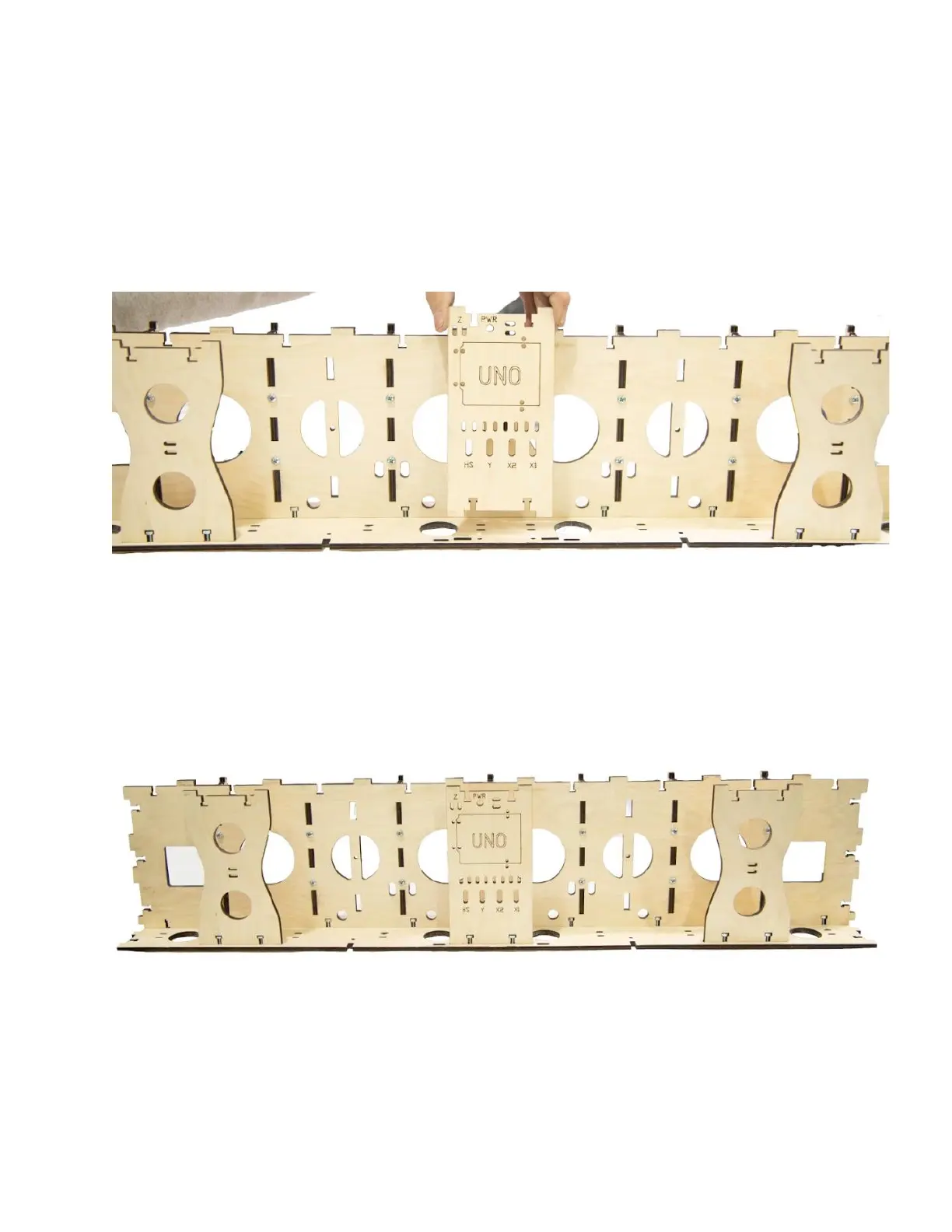

Step 10 Align and insert the tabs of the Controller Mount (G5) into the
slots of the Gantry Frame Assembly and secure with two M4 x
16 Machine Screws and Nuts as shown.
