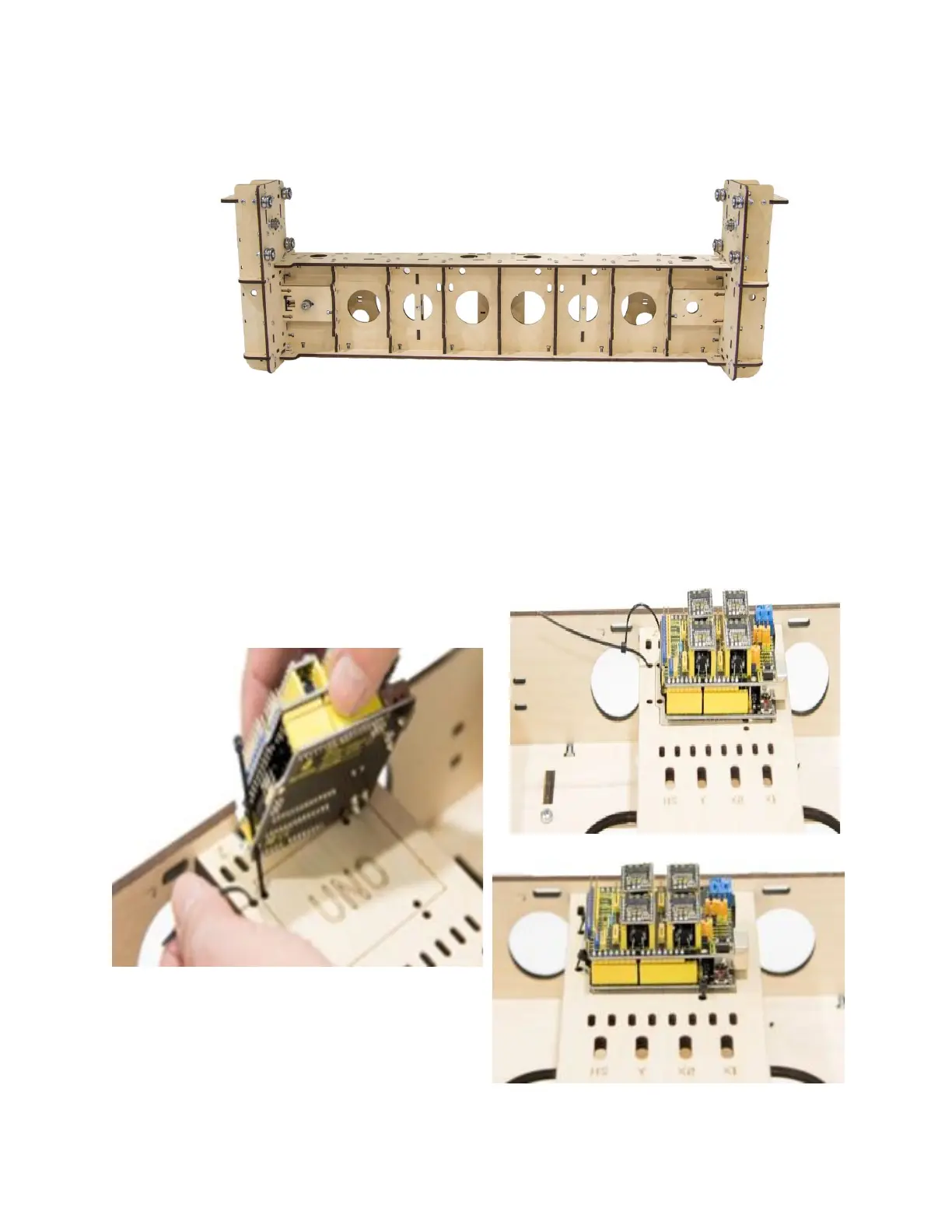

Step 19 Repeat the three steps to install the Bearing Assemblies to the
opposite Gantry Side Assembly as shown.
Step 20 Install the Arduino Controller to the Gantry Assembly using four
Zip Ties as shown. NOTE: when threading the Zip Ties through
the attachment holes, do not tighten until all four Zip Ties are
installed. Do not over-tighten. Once installed, clip the loose
ends of the Zip Ties.
