62

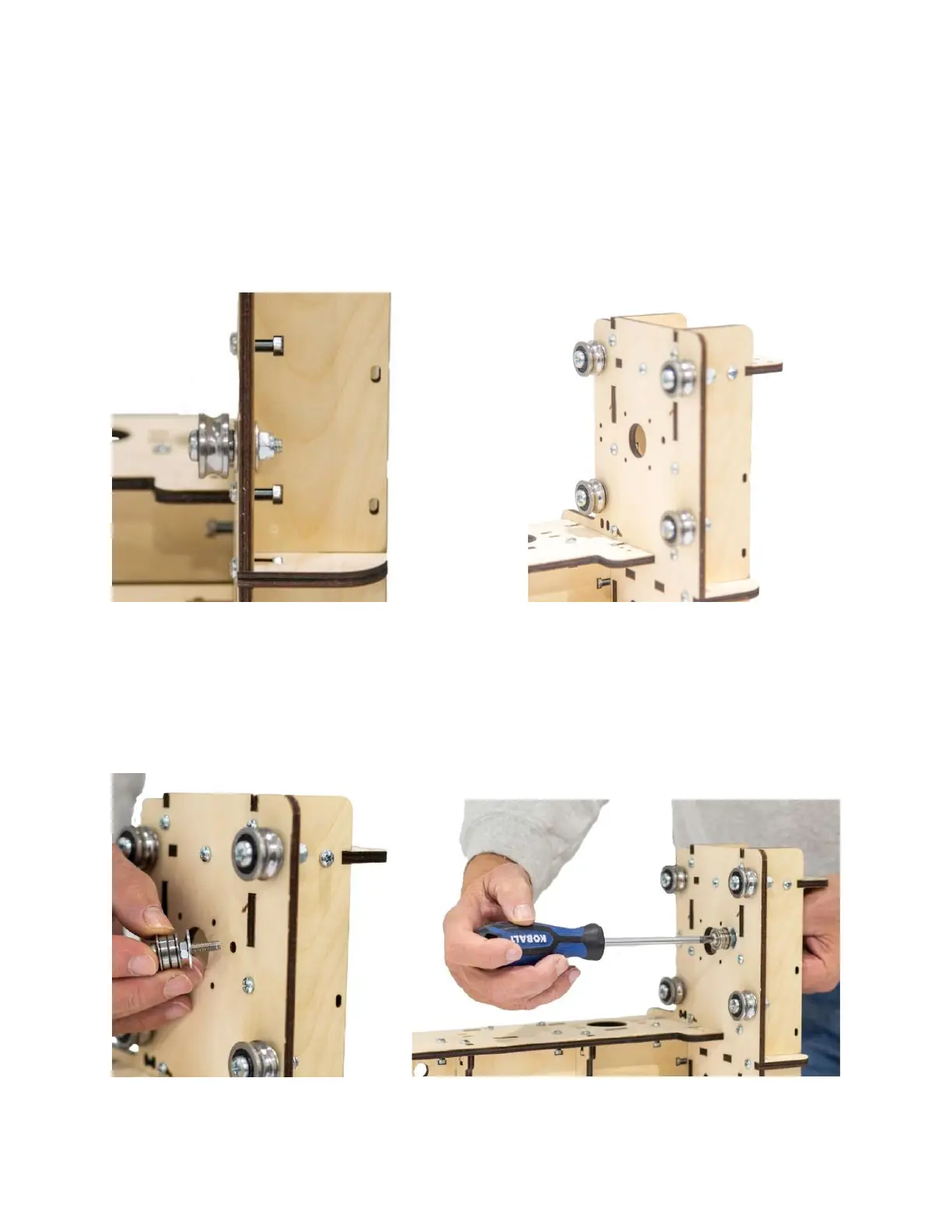

18b Upper Bearing Order: M6 x 30 Machine Screw, SG20U
Bearing (with hub facing toward the Bearing Washer),
Bearing Washer, Plywood, Bearing Washer, secured
with a M6 Lock Nut.
18c Install the Idler Bearing Assembly and secure with an M5
Lock Nut as shown.
