66
21d Mount the X1 Home Switch using two M2.5 x 16
Machine Screws and Lock Nuts. Secure the Home
Switch Wires with a Zip Tie as shown.

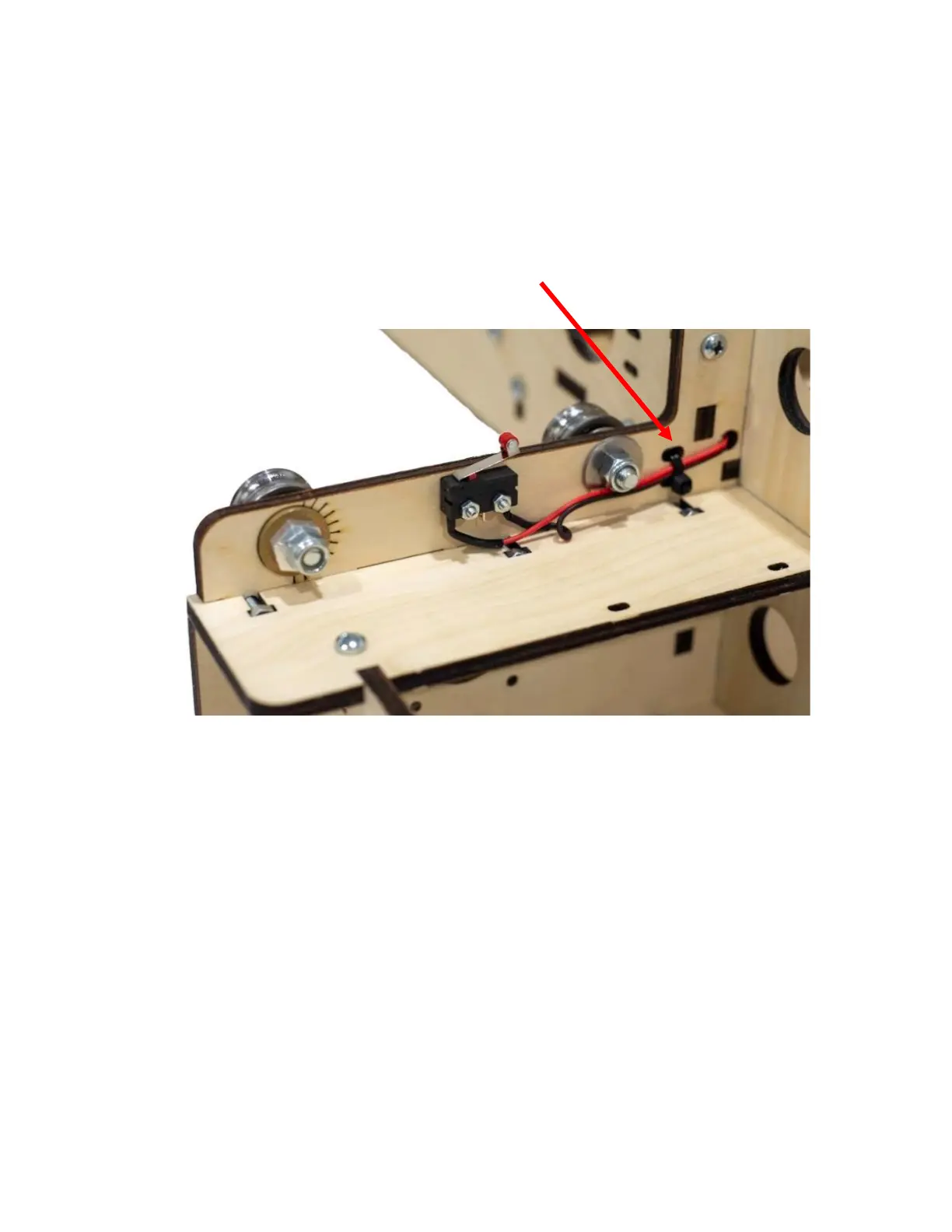

X1 Home Switch Installed.
Zip Tie
