Step 23 Installing the Y Home Switch.

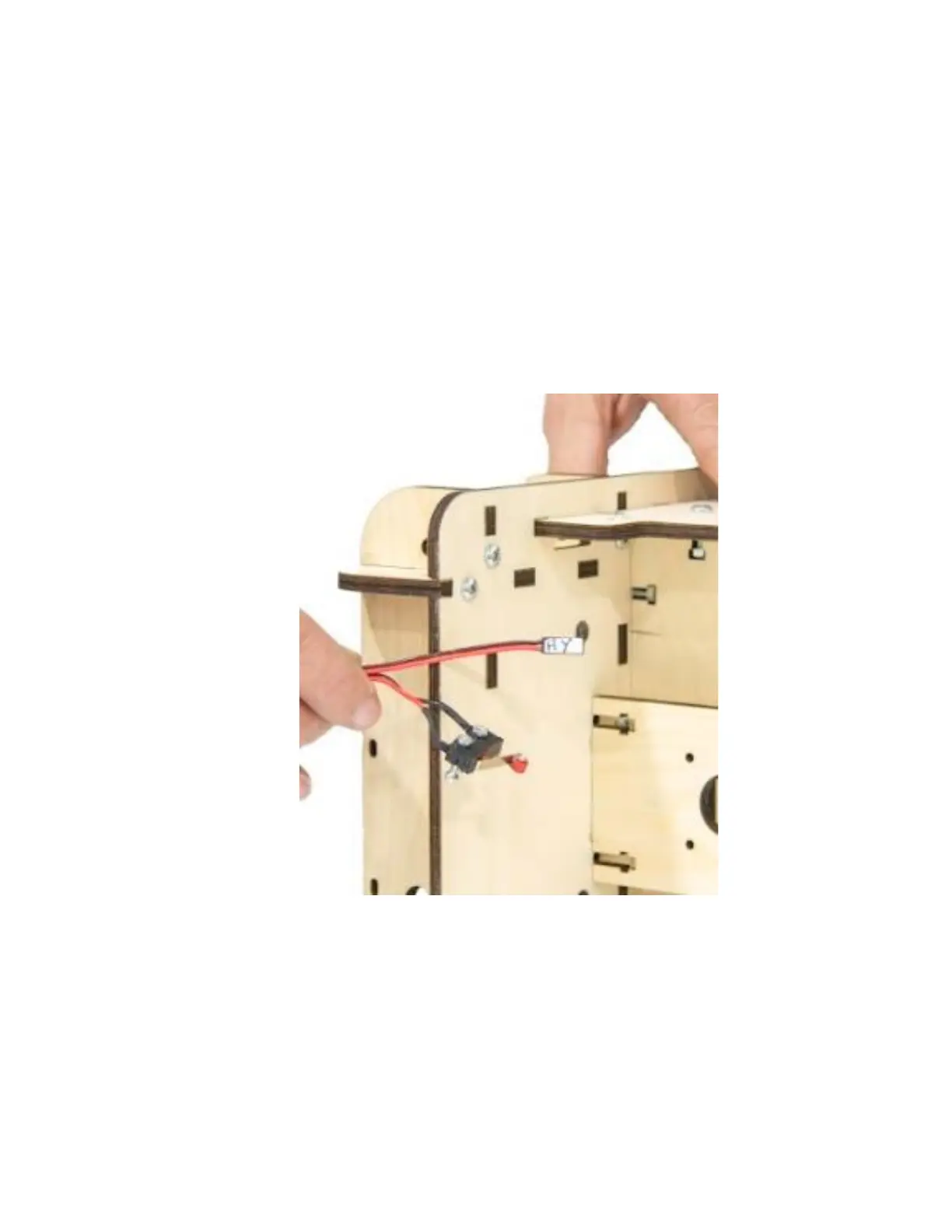

23a The Y Home Switch is in installed the upper left
corner of the Gantry Assembly when viewed from the
Front or to the right of the Controller when viewed
from the back. Begin by labeling the pin cover using
easy to read tape or other label material. Mark the
label as “H Y.”
