68

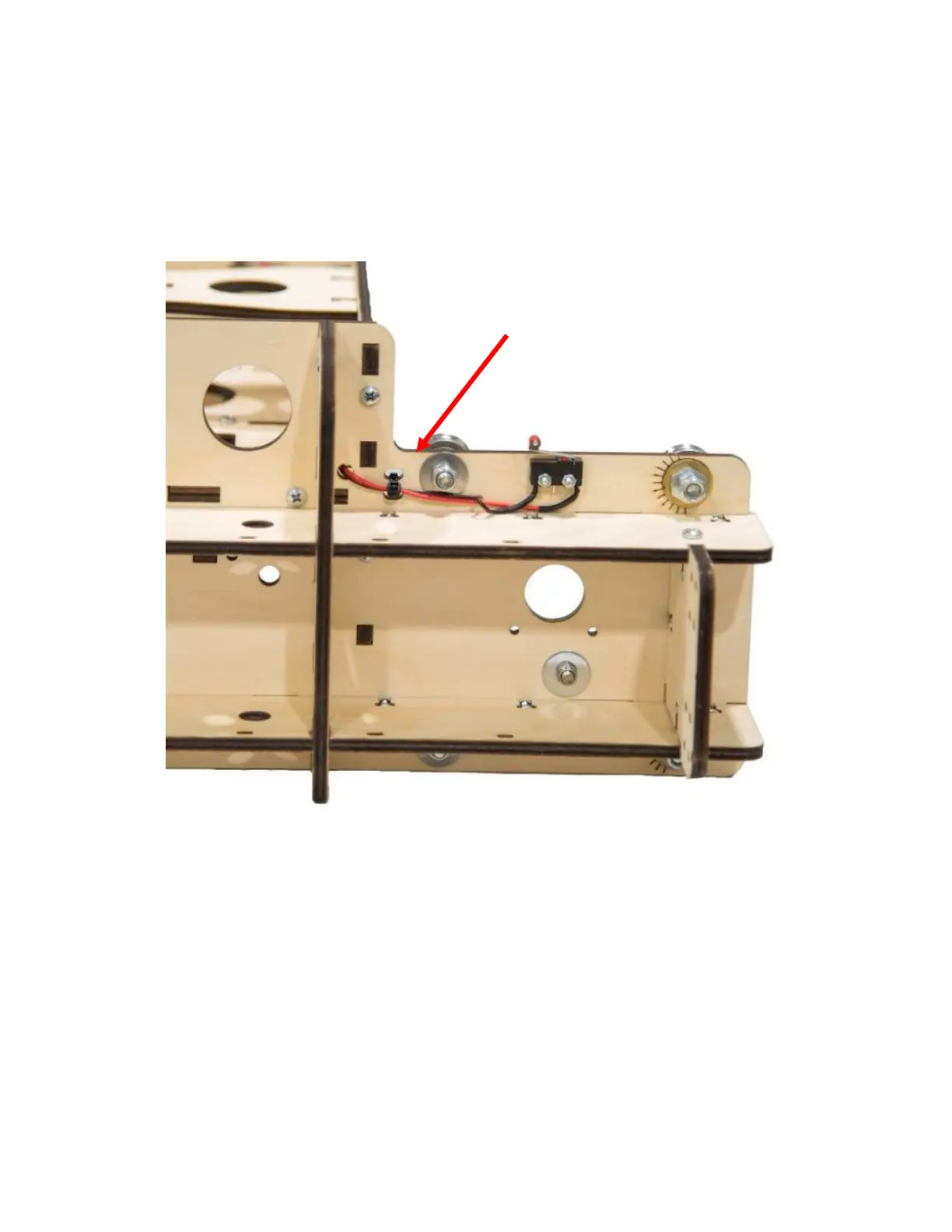

22c Mount the X2 Home Switch using two M2.5 x 16
Machine Screws and Lock Nuts. Secure Home Switch
Wires with a Zip Tie as shown.
X2 Home Switch Installed
Zip Tie
