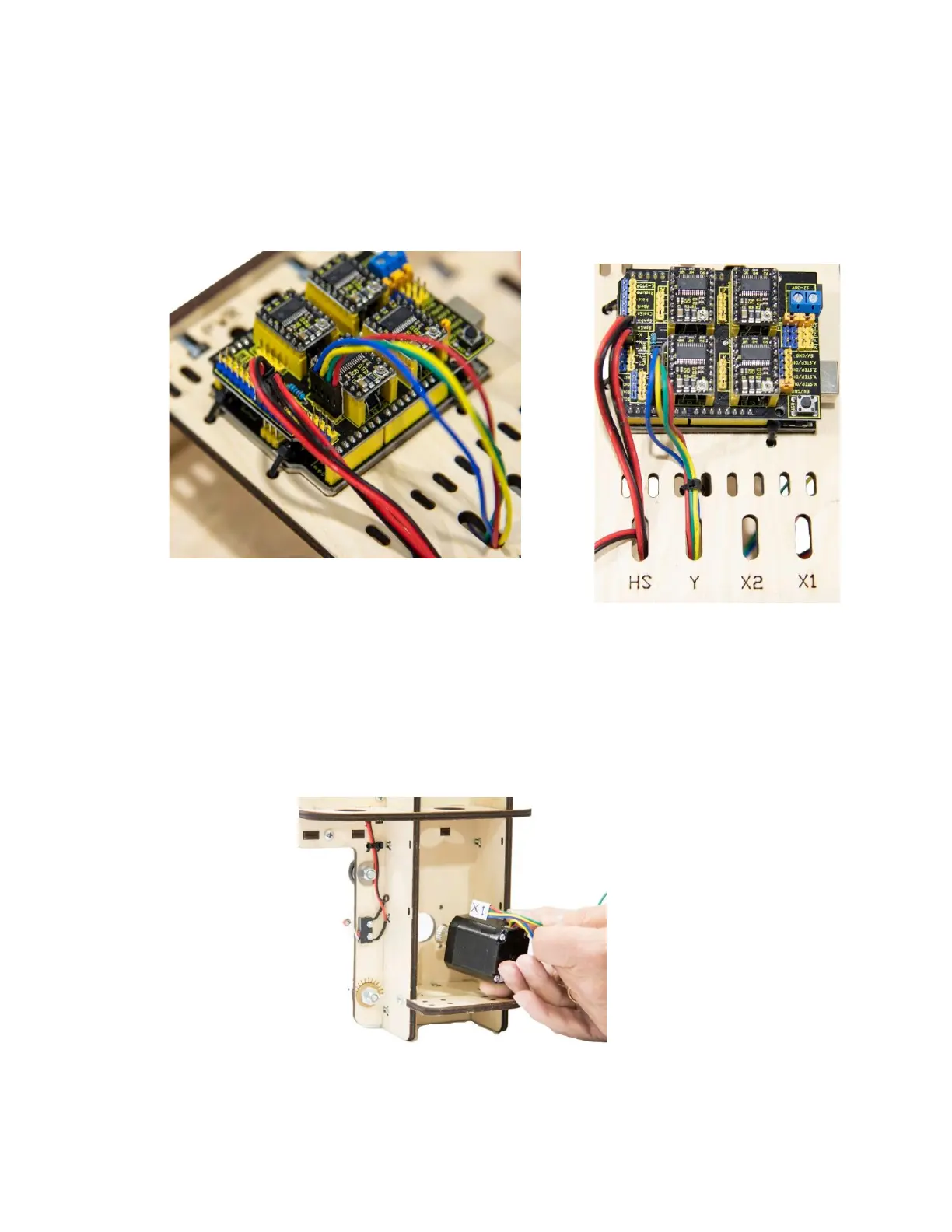

25c Connect the Y Stepper Motor Plug onto the 4 Pins on
the left side of the Y Driver as shown. Secure Wires to
the Controller Board with a Zip Tie as shown. [NOTE:
The color code orientation must be as shown].
.
Step 26 Installing the X1 Stepper Motor Assembly.
26a Insert the X1 Stepper Motor Assembly into the left
side of the Gantry Assembly when facing the front, and
secure with four M3 x 10 Machine Screws.
