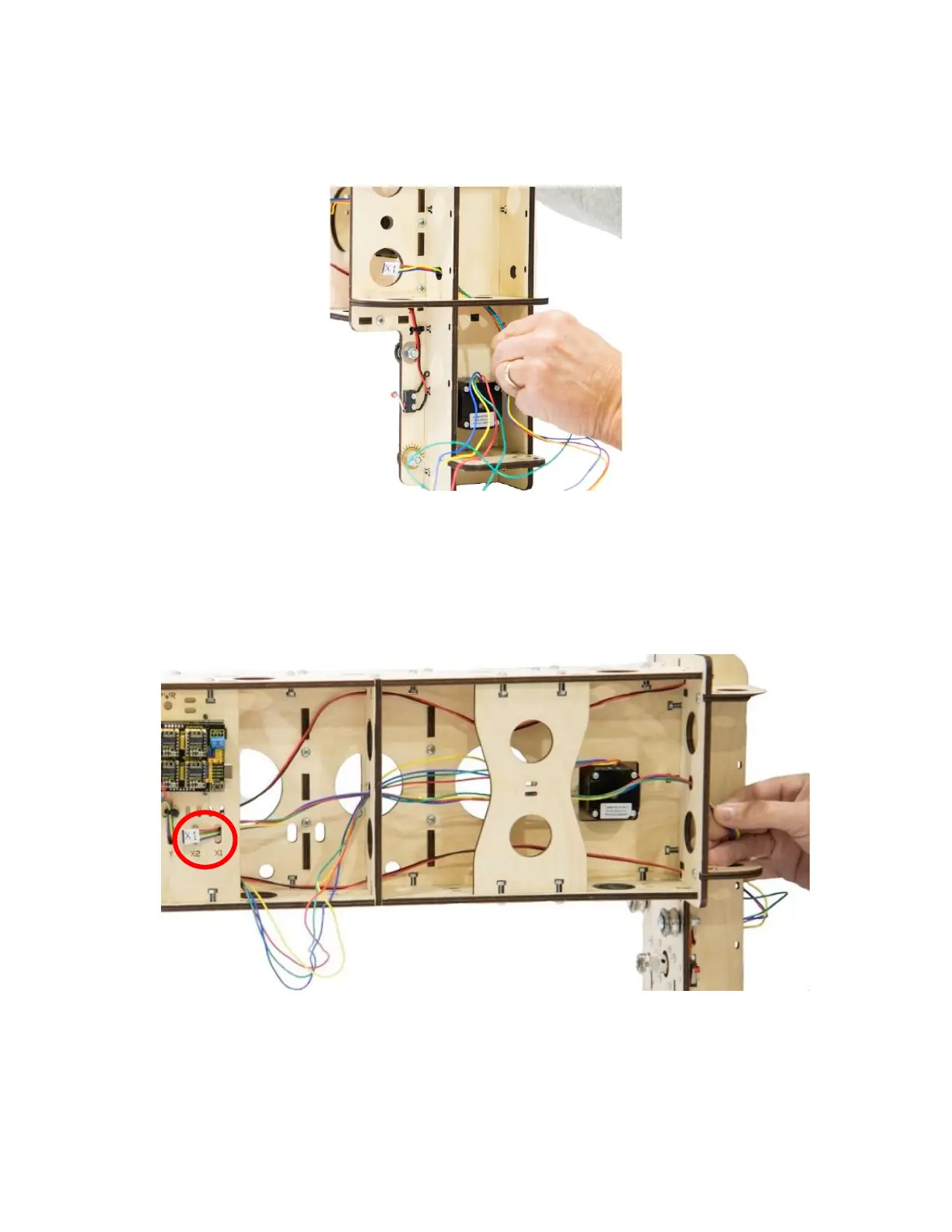

26b Route the Stepper Motor Wires up through the
Gantry Side Assembly as shown.
26c Continue routing the Stepper Motor Wires across
the Gantry and through X1 Wire slot in the Controller
Mount as shown.
