76

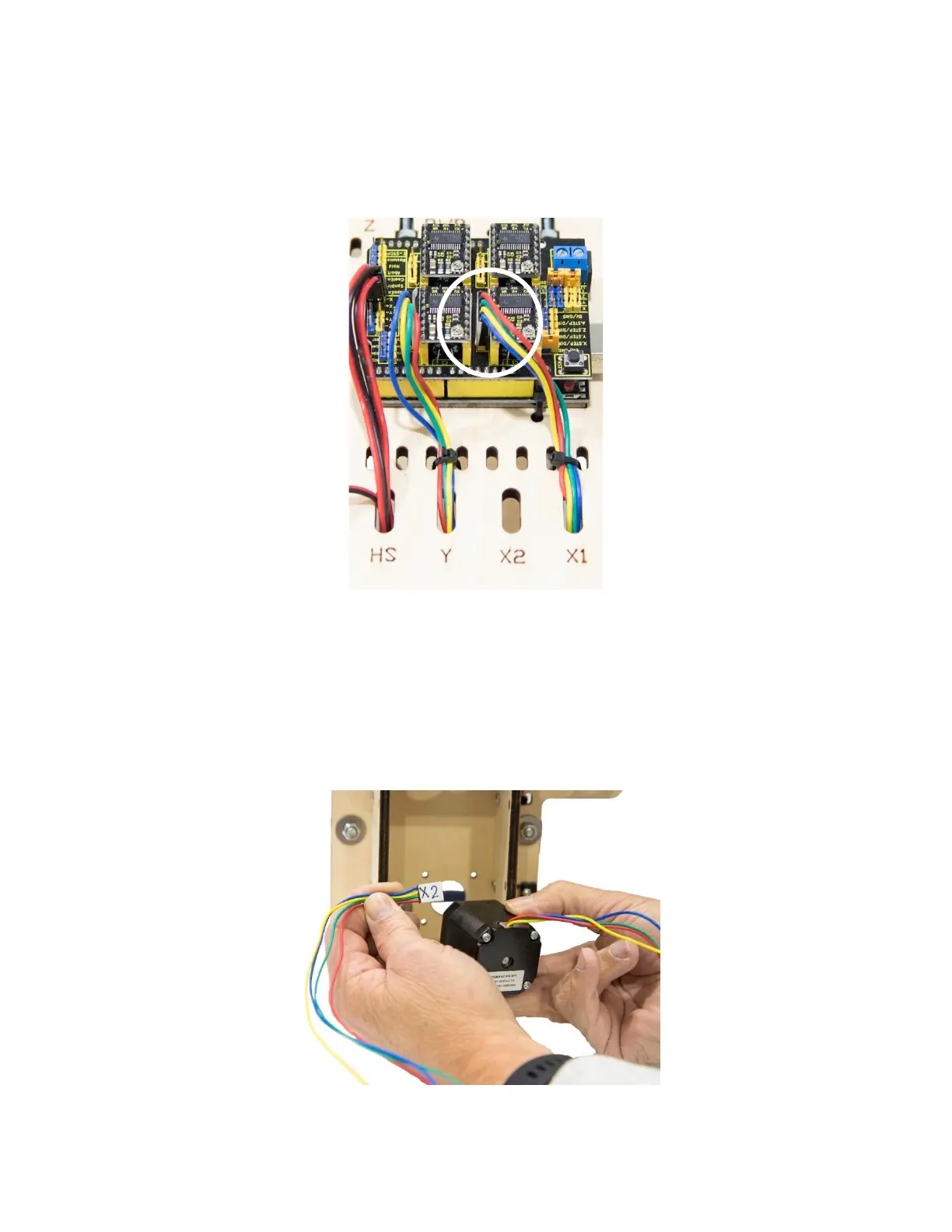

26d Connect the X1 Plug to the X1 Driver pins located to
the left of the Driver as shown. [NOTE: follow the
color orientation of the X1 plug as shown].
Step 27 Installing the X2 Stepper Motor Assembly.
27a Insert the X2 Stepper Motor Assembly into the right
side of the Gantry Assembly when facing the front
and secure with four M3 x 10 Machine Screws.
