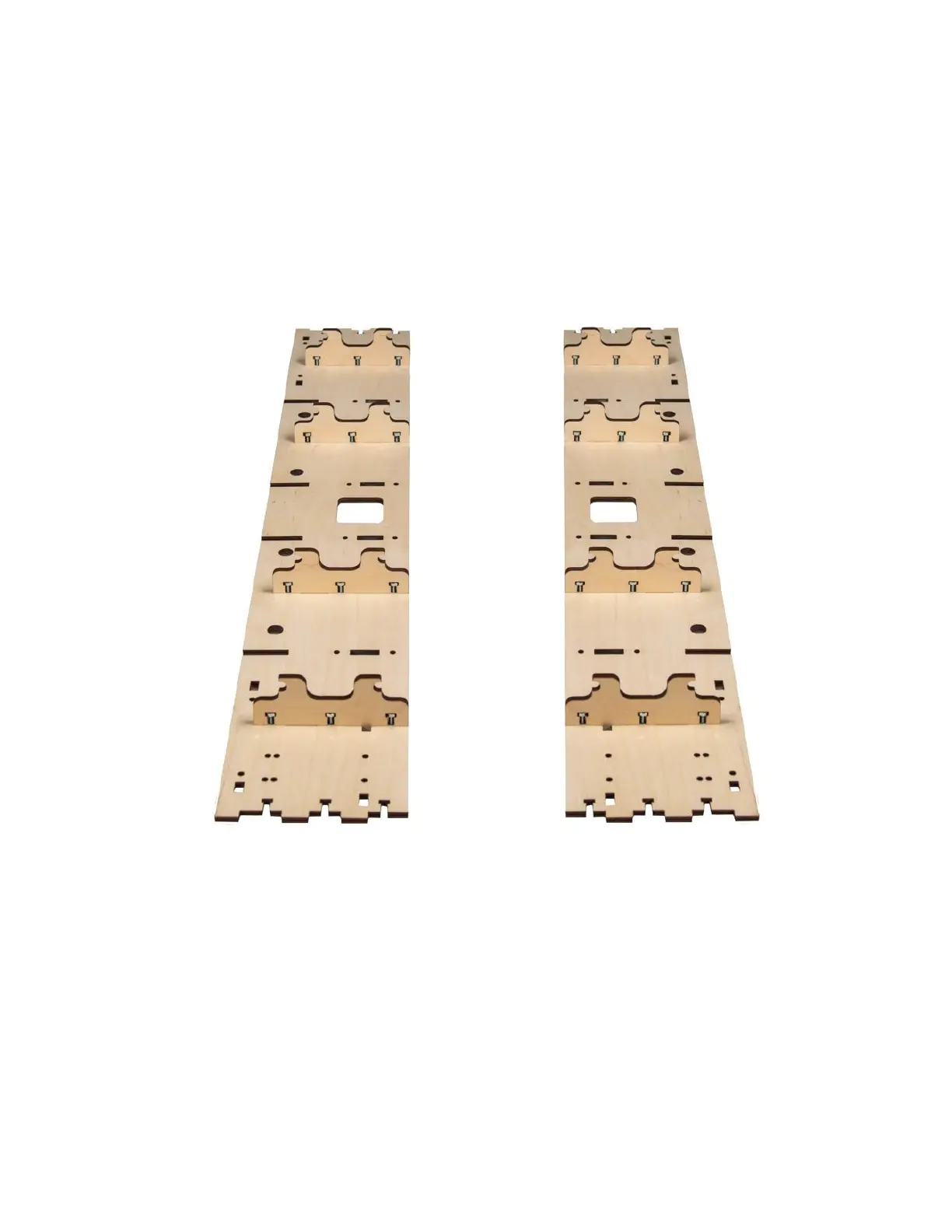

Step 2 Align the tabs of the remaining four Rail Supports (X1)
into the slots in the Frame Side Support Rear(X5). Secure
with three M4 x 16 Machine Screws and Nuts for each Rail
Support as shown. Repeat to complete both Rear Side
Support Assemblies.
Left Side
Right Side
