94

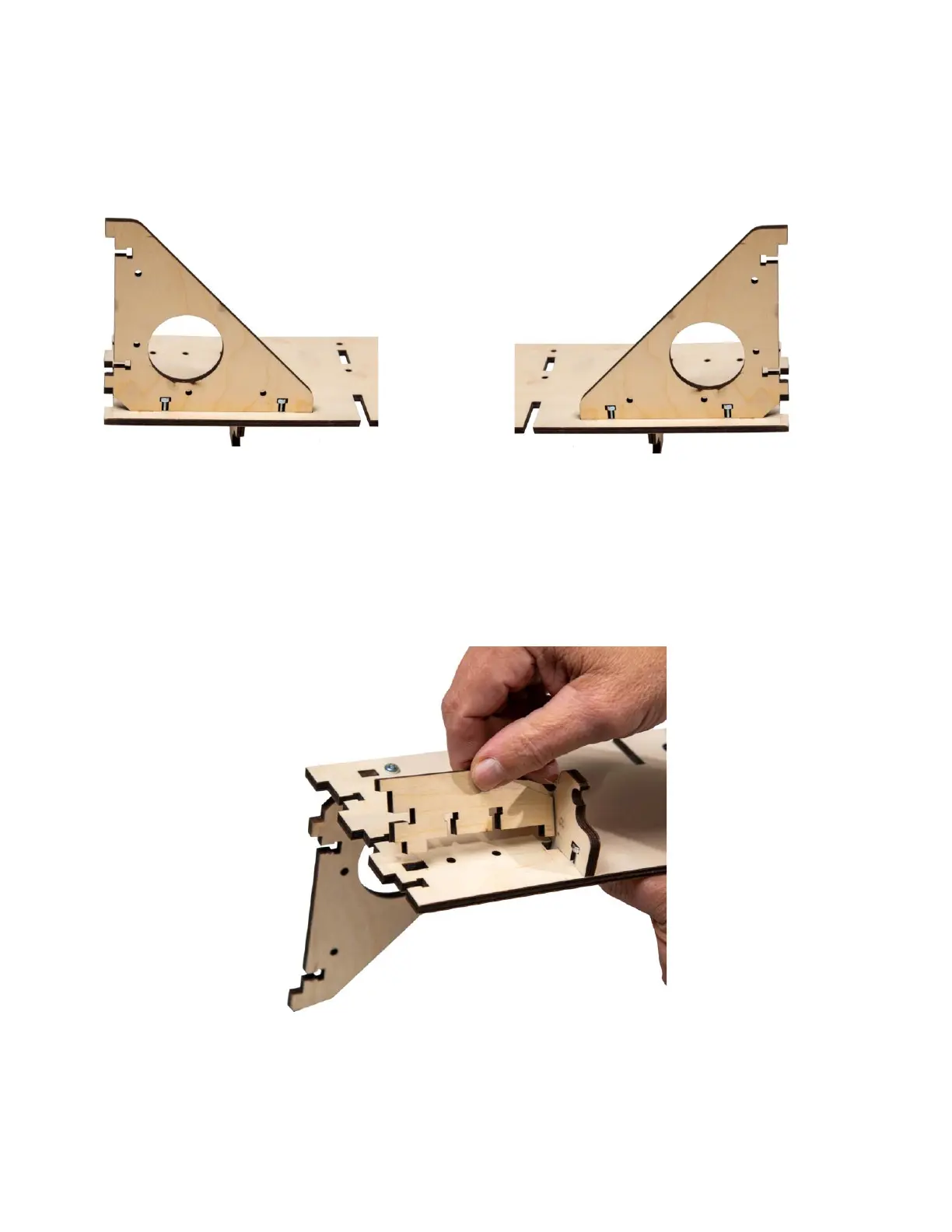

Step 3 Align the tabs of the two Frame Corner Supports (X8) into
the lower slots of the Side Assembly and secure with two
M4 x 16 Machine Screws and Nuts for each side as shown.
Step 4 Align the tabs of the two Frame Corner Braces (X2) into
the upper slots of the Side Assembly and secure with two
M4 x 16 Machine Screws and Nuts for each side as shown.
