Properly reinstall removed parts in the
reverse order of their removal.

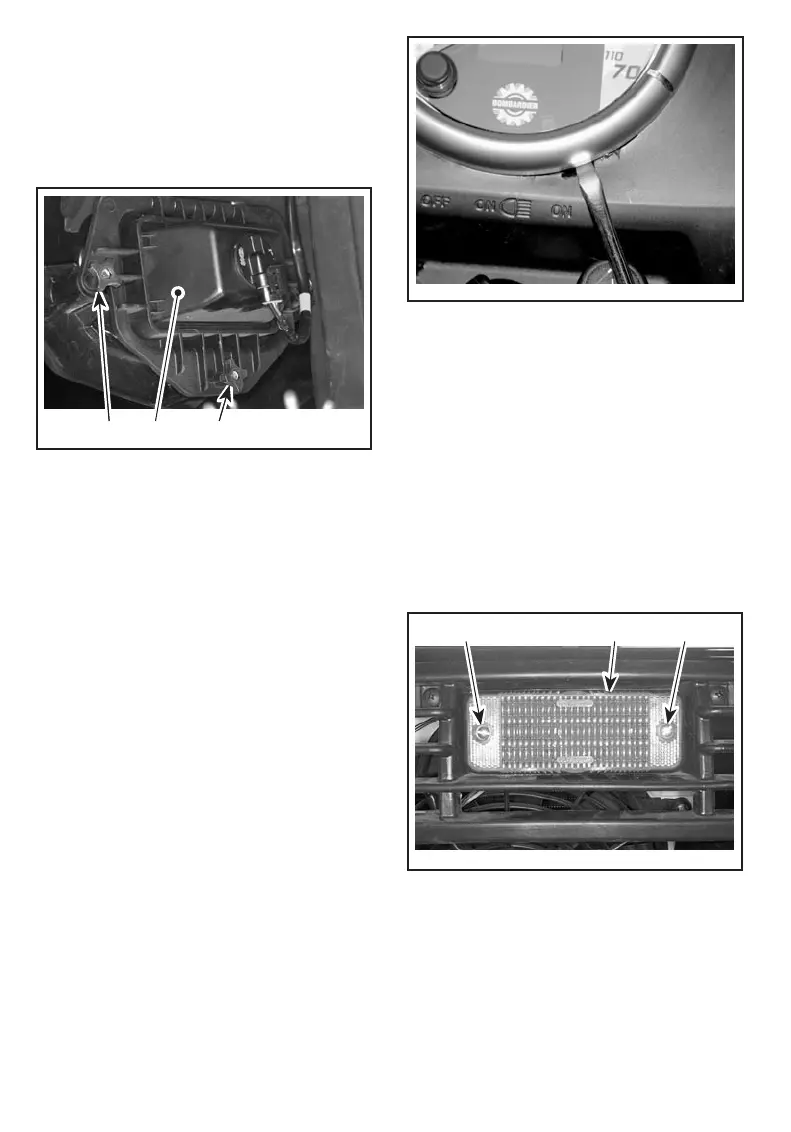

Adjust beam aiming as follows:
Turn knobs to adjust beam height and
side orientation to your convenience.
Adjust both headlamps evenly.
1
V04G02Z
3 2
1. Headlamp cover
2. Beam height adjustment
3. Beam side adjustment
Auxiliary Headlamp
CAUTION:
Never touch glass por-
tion of an halogen bulb with bare
fingers, it shortens its operating life.
If glass is touched, clean it with iso-
propyl alcohol which will not leave
a film on the bulb.
Insert a little flat screwdriver into the
slot at the bottom of the speedome-
ter. Slightly, pry the speedometer and
turn it clockwise then remove it from
steering pod.
V01A67Y
Unplug the auxiliary headlamp then
turn the socket counterclockwise to
unlock it. Pull the socket out of aux-
iliary headlamp housing and remove
bulb.
Install a new bulb then place the
socket into housing. It is important to
position the socket connector down-
wards.
Reinstall all removed parts.
Taillight
Unscrew lens screws to expose bulb.
V01L0HY
12
2
1. Lens
2. Screws
Push bulb in and hold while turning
counterclockwise to release.
Install the new bulb by first pushing in
while turning clockwise.
138
