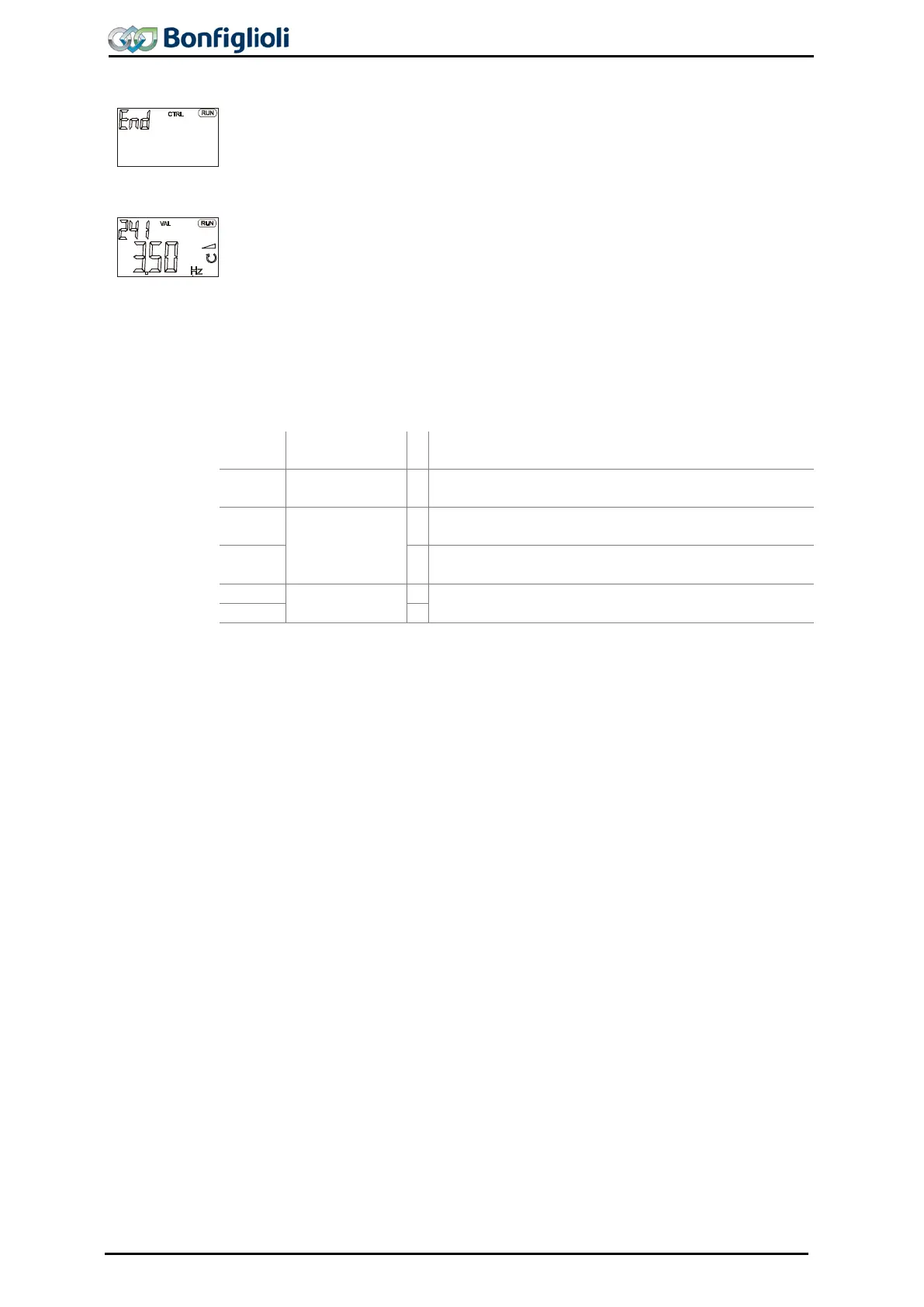

8.2.11 Quitting commissioning
Confirm the "End" display by pressing the ENT key.
The guided commissioning of the frequency inverter is terminated via a reset and
the initiali
zation of the frequency inverter. The relay output X10 signalizes a fault,
because of the factory setting Op. Mode Digital Output 3 532 = “103 -
Inv. Error
Signal” (Inv: inverted).
After successful initialization of the frequency inverter, the factory-set parameter
Actual frequency 241 is displayed.
The drive is accelerated to the set min. frequency 418
(factory setting 3.50 Hz in
configurations 110, 111, 410, 411, 430 or to 0.00 Hz
in configurations 210, 211,
230, 510) by:
• signals at digital inputs S1IND/STOA and S7IND/STOB and
• Start clockwise by rising signal edge at S2IND or
Start anticlockwise by rising signal edge at S3IND
Status signals
160 - Ready Signal
1)
Indicates initialization and operating readiness of the
inverter.
1 -
Ready or
Standby Signal
2)
Indicates initialization and operating readiness of the
inverter.
161 -
Run Signal
1)
Indicates enable and start command (output frequen-
cy available).
2 -
2)
Indicates enable and start command (output frequen-
cy available).
162 -
Error Signal
1)
Monitoring function signalizes a fault with display in
parameter
Current Error
259.
3 -
2)
1)
For linking with inverter functions
2)
For digital output
8.2.12 Selection of an actual value for display
After commissioning, the value of parameter Actual frequency 241 is displayed at
the control unit KP500.
If another actual value is to be displayed after a restart, make the following settings:
• Use the arrow keys to select the actual value to be displayed as from now.
• Use the ENT key to display the value of the parameter.
• Press the ENT key again. "SEt" is displayed for confirmation.
As from now, the selected actual value is displayed after each restart.
If the parameter settings were made via the optional control software or in the PARA
menu branch of the operating unit, the display of the selected actual value must be
activated manually. Use the ESC key to switch to the sel
ection of the actual value for
display again.
112 Operating Instructions ACU 06/13
