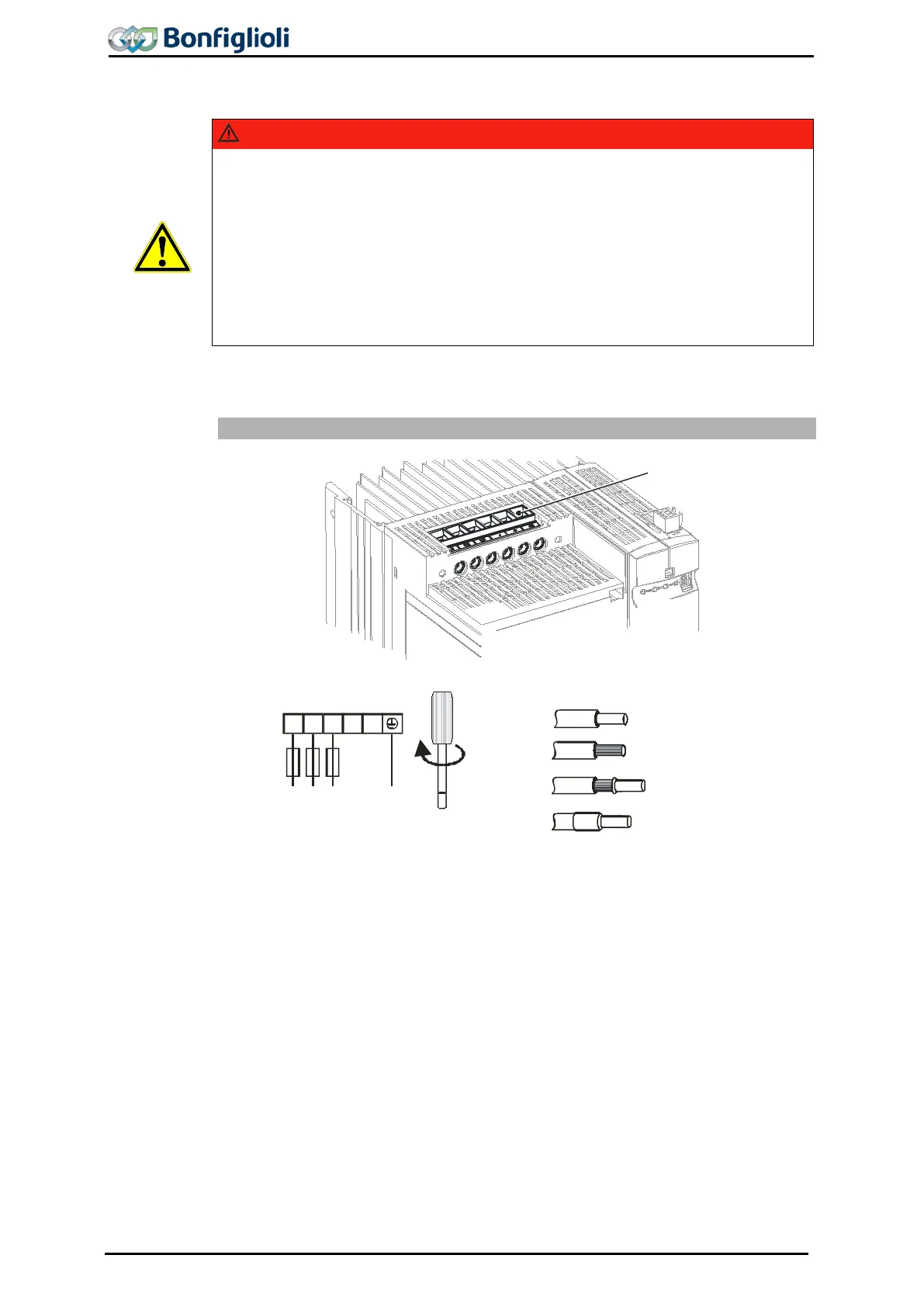

6.5.3 ACU 401 (18.5 to 30.0 kW)
DANGER
Disconnect the frequency inverter from mains voltage and protect it against being
energized unintentionally.
Verify that the frequency inverter is discharged.
Wait for some minutes until the DC link capacitors have discharged before starting to
work at the unit.
When the frequency inverter is disconnected from power supply, the mains, DC-
link
voltage and motor terminals may still be live for some time.
Switch off power supply
before connecting or disconnecting the mains cable
to/from terminal X1, the motor cables and the brake resistor to/from terminal X2.
• The unit may only be connected with the power supply switched off.
• Make sure that the frequency inverter is discharged.
Mains connection ACU 401 (18.5 to 30.0 kW)
0.5 … 35 mm
AWG 20 … 2
2
18.5 kW … 30.0 kW
PHOENIX MKDSP 25/ 6-15,00-F
0.5 … 25 mm
AWG 20 … 4
2
1.00 … 25 mm
AWG 18 … 4
2
1.5 … 25 mm
AWG 16 … 4
2
+
-
L1
L2 L3
L1
L2
L3
PE
3ph / 400V AC
X1
X1
2.5 Nm
22.1 lb-in
64 Operating Instructions ACU 06/13
