5.5 ACU 401 (75.0 to 132.0 kW)

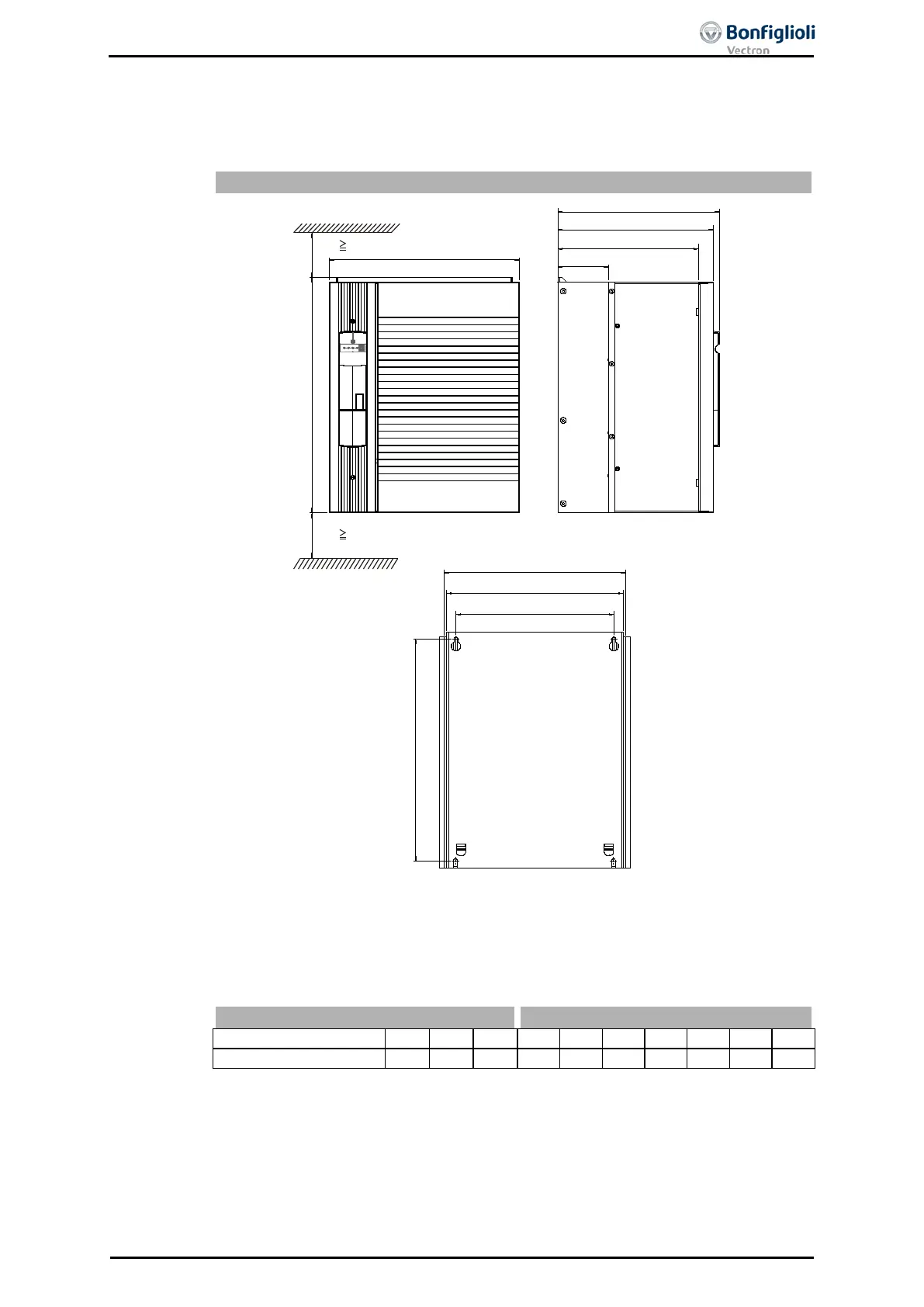

The frequency inverter is mounted in a vertical position on the assembly panel. The
following illustration shows the standard fitting.
Standard installation
The diameter of the fixing holes is 9 mm.
Assembly is done by screwing the back wall of the frequency inverter to the assembly
panel.
The dimensions of the device and the installation dimensions are those of the stand-
ard device without optional components and are given in millimeters.
Dimensions [mm]
Installation dimensions in mm
ACU
a
b
c
a1
b1
b2
b3
c1
c2
c3
401
75...132 kW
510
412
351
480
392
382
342
338
305
110
a
b
c
c1
c2
c3
b1
b2
b3
a1
x
x
x
300 mm
x
300 mm
