6.6 Control Terminals
The control and software functionality can be configured as required to ensure a
reliable and economical opera
tion. The operating instructions describe the factory
settings of the standard connections in the relevant Configuration 30
as well as the
software parameters to be set up.
CAUTION
The unit may only be connected with the power supply switched off.
Verify that the frequency inverter is discharged.
Switch off power supply before connecting or disconnecting the control inputs and
outputs. Verify that the keyed control inputs and outputs are deenergized before
connecting or disconnecting them. Otherwise, components may be damaged.

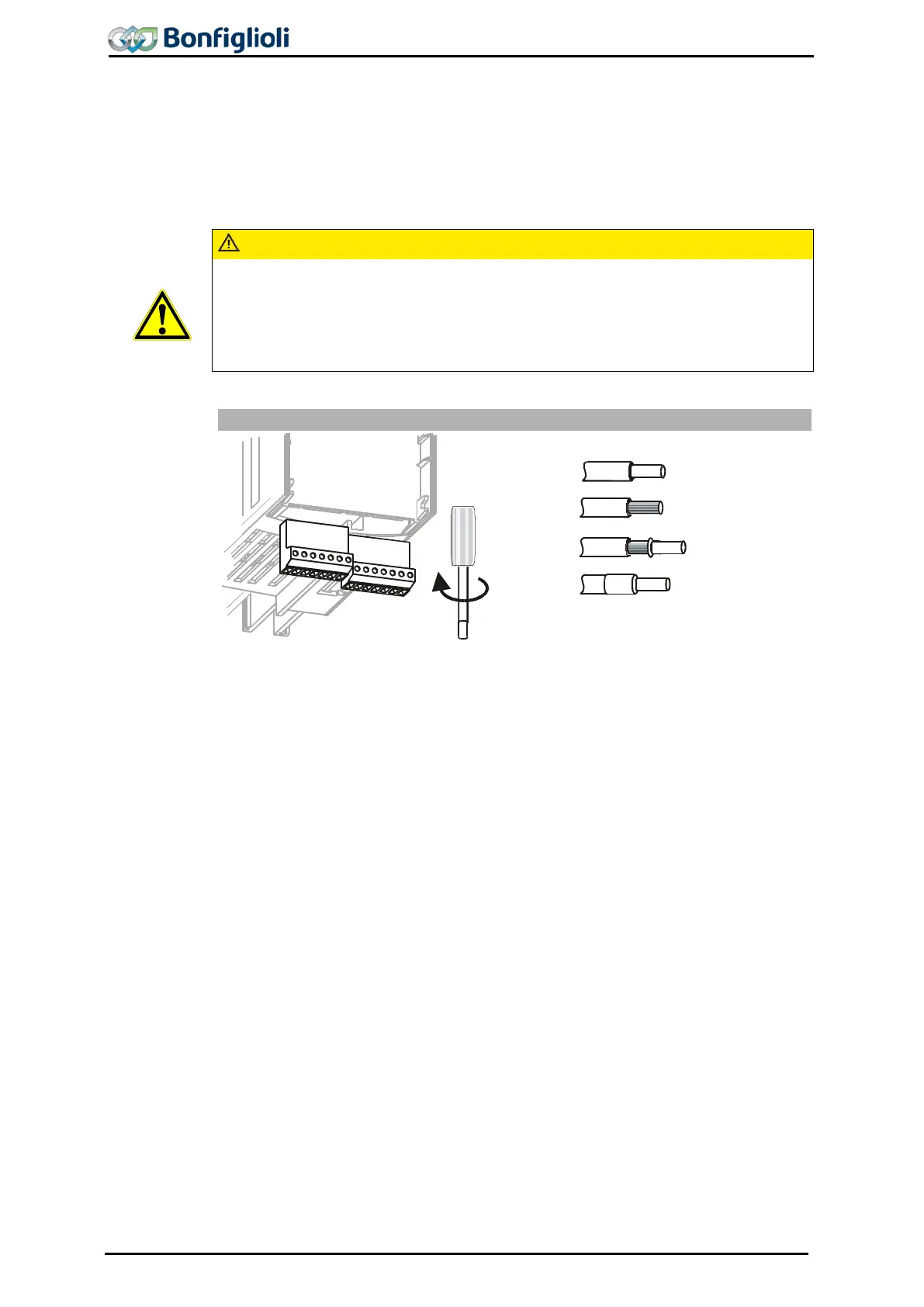

Control Terminals
0.14 … 1.5 mm
AWG 30 … 16
2
Wieland DST85 / RM3,5
0.14 … 1.5 mm
AWG 30 … 16
2
0.25 … 1.0 mm
AWG 22 … 18
2
0.25 … 0.75 mm
AWG 22 … 20
2
0.2 … 0.3 Nm
1.8 … 2.7 lb-in
70 Operating Instructions ACU 06/13
