bonitron M3645 - Table 3-5: Power Terminal Specifications - 300 Amp Unit - M15 Chassis

User’s Manual
21
DANGER!
The AC control wiring to the M3645-x300T is phase sensitive. If the AC
control wiring is not in phase with power wiring catastrophic damage to
equipment will result.

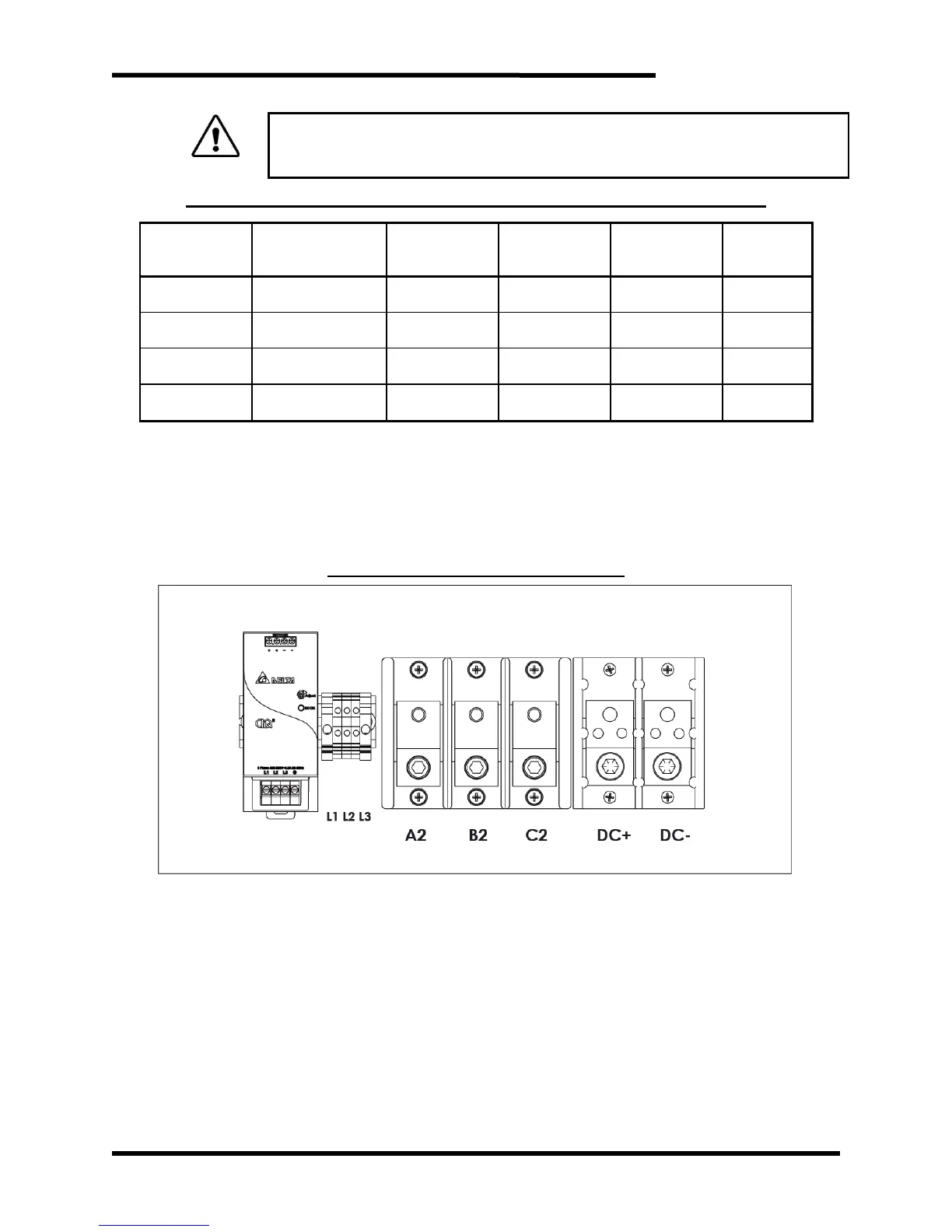

Table 3-5: Power Terminal Specifications - 300 Amp Unit – M15 Chassis
TERMINALS
FUNCTION
ELECTRICAL
RATINGS
WIRE SIZE
MINIMUM
WIRE SIZE
MAXIMUM
TORQUE
L1, L2, L3
AC control power
18 AWG
10 AWG
4.4 lb-in
A2, B2, C2
AC line outputs
300A
350 kcmil
350 kcmil
275 lb-in
DC+, DC-
DC bus inputs
300A
350 kcmil
350 kcmil
275 lb-in
GND
Ground
3 AWG
1/0
50 lb-in
Notes:
L1, L2, L3 AC control power and A2, B2, C2 AC line output are phase sensitive, switching the order
of phases to any of the inputs may result in damage to the regen. L1 is the same phase as A1. L2
is the same phase as A2. L3 is the same phase as A3.
All power wire should be selected to match or exceed the voltage rating of the unit.
Field wiring for terminals will be copper 75
°
C wire only.
Figure 3-4: 300A Power Connections
