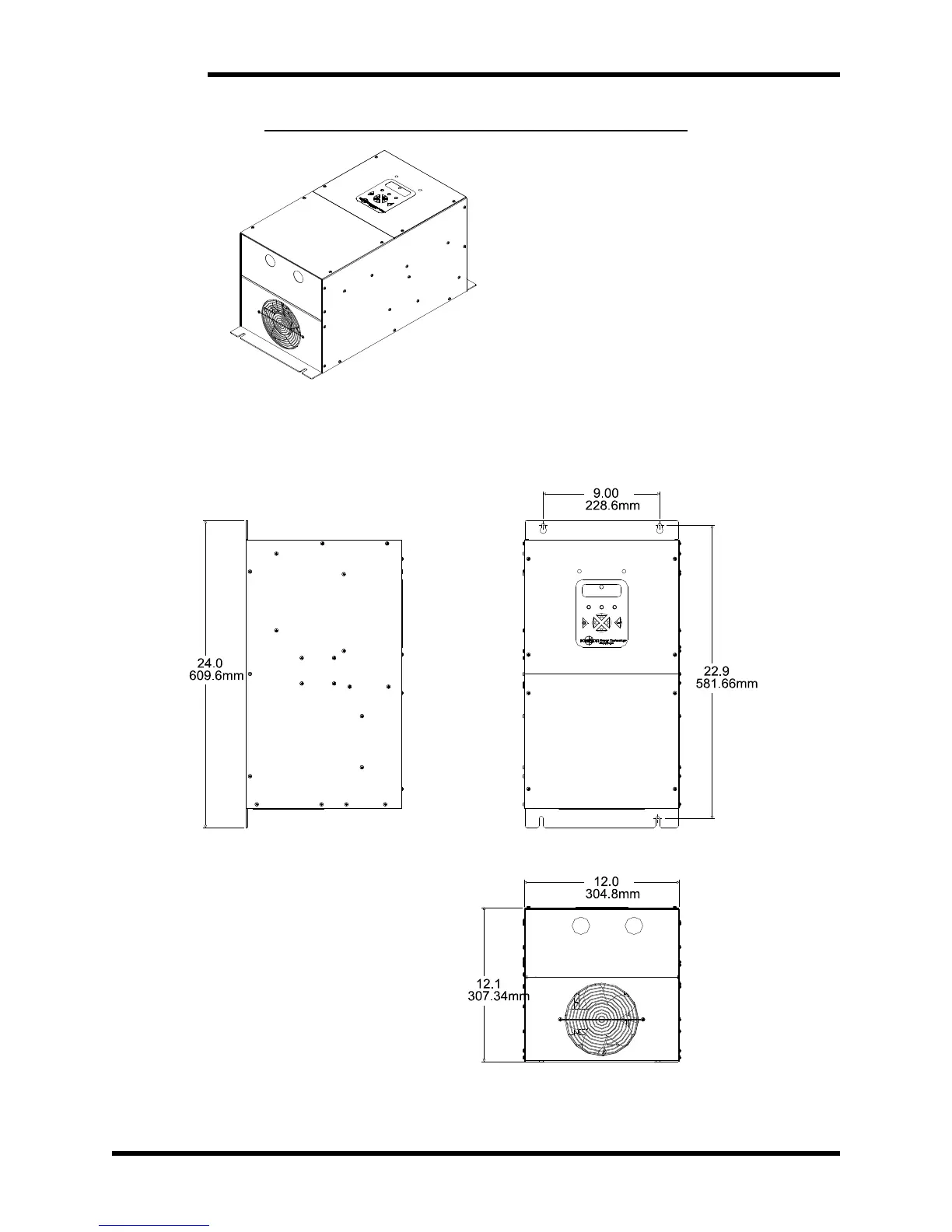

Figure 6-3: M3645 M12 Chassis Dimensional Outline

24.0

609.6mm

12.0

304.8mm

12.1

307.34mm

22.9

581.66mm

9.00

228.6mm
