bonitron M3645 - Figure 6-2: M3645 M11 Chassis Dimensional Outline

User’s Manual
45

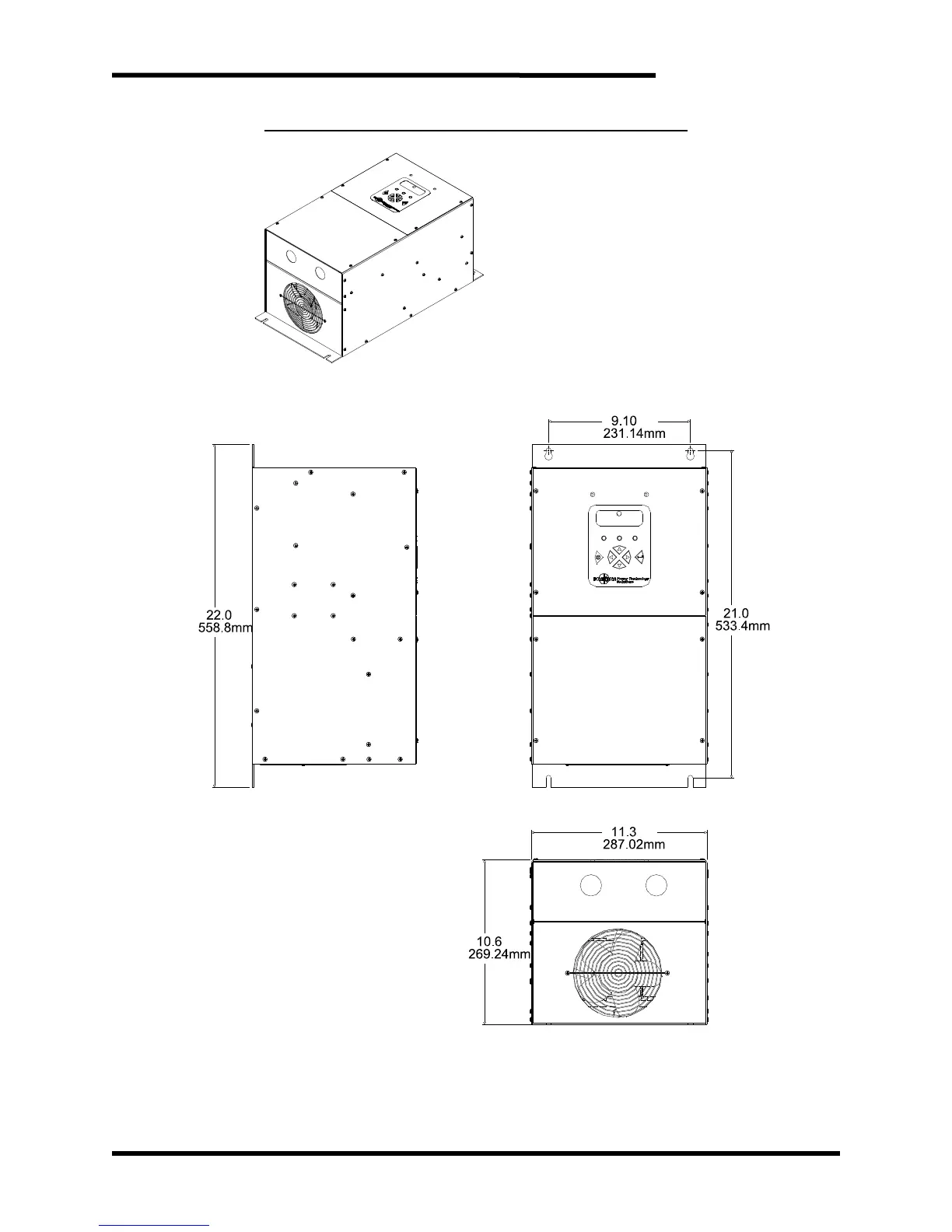

Figure 6-2: M3645 M11 Chassis Dimensional Outline
22.0
558.8mm
11.3
287.02mm
10.6
269.24mm
21.0
533.4mm
9.10
231.14mm
