bonitron M3645 - Figure 6-6: KIT 3645 DD, External Display Dimensional Outline

User’s Manual
49

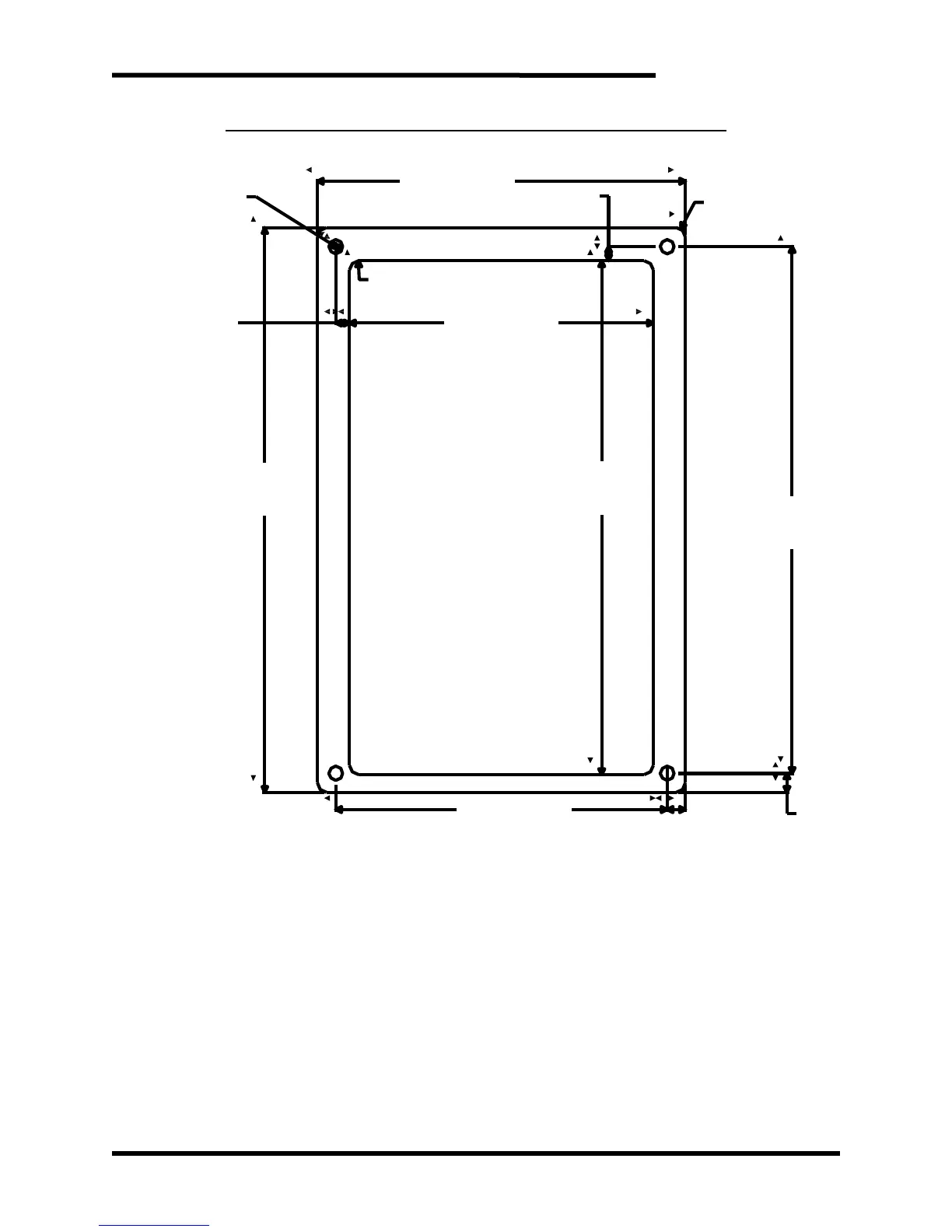

Figure 6-6: KIT 3645DD, External Display Dimensional Outline
5.00
127.0 mm
7.50
190.5 mm
6.83
173.5 mm
4.13
104.8 mm
7.00
177.8 mm
.19
4.8 mm
4.50
114.3 mm
.25
6.4 mm
.25
6.4 mm
R.13
R3.2 mm
R.13
R3.2 mm
n.19
n4.8 mm
.19
4.8 mm
CUTOUT
