6.6. DIMENSIONS AND MECHANICAL DRAWINGS

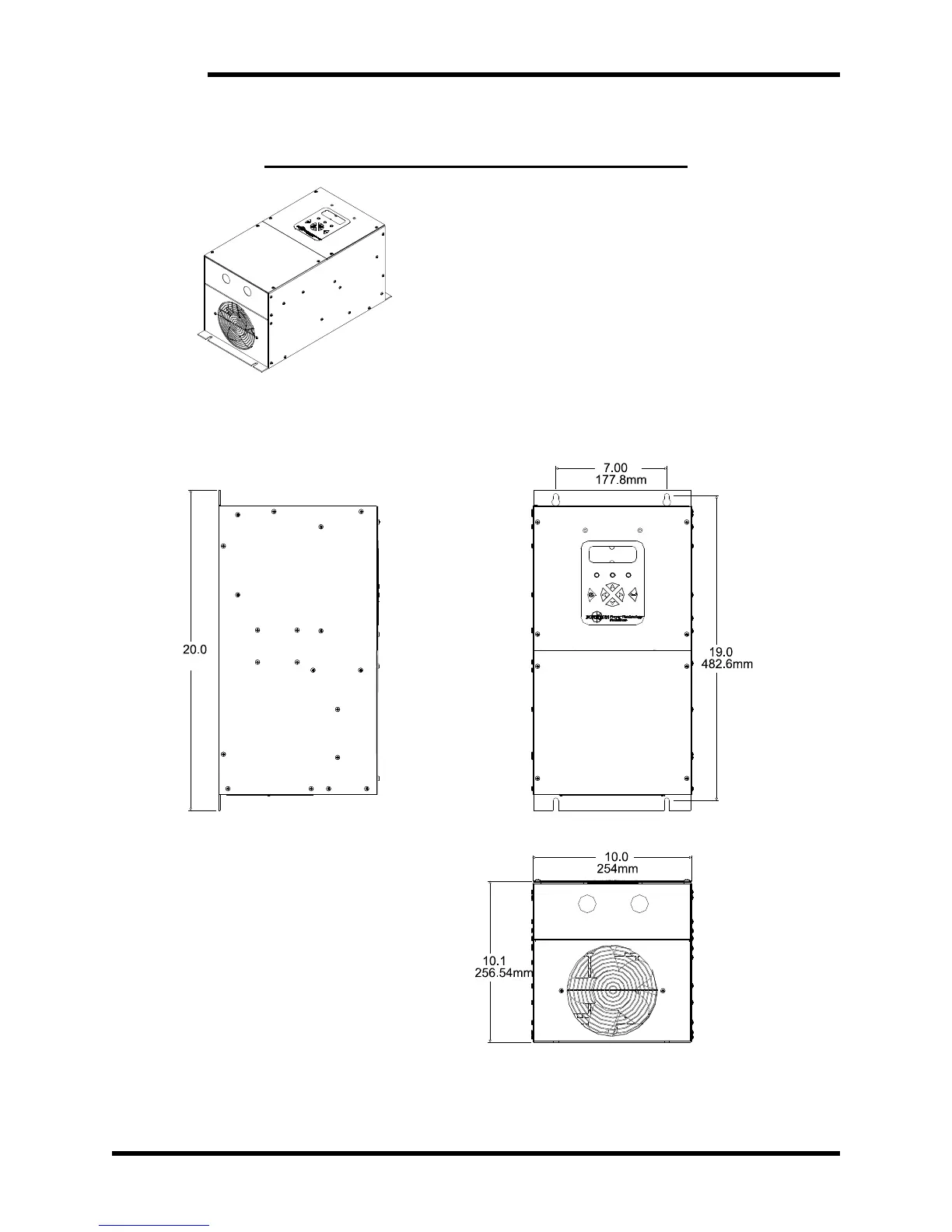

Figure 6-1: M3645 M10 Chassis Dimensional Outline
20.0
508mm
10.0
254mm
10.1
256.54mm
19.0
482.6mm
7.00
177.8mm
