EN
13
Installation
www.bora.com
5 Installation
5.2 Tool and aids
The following special tools are required to correctly install the
cooktop:
Drill or cordless drill with 14 mm wood bit
Compass saw or hand saw
Torx 20 screwdriver
Black, heat-resistant silicone sealant
5.3 Assembly instructions
Safety clearances
X
Maintain the following safety clearances:
1
3
2

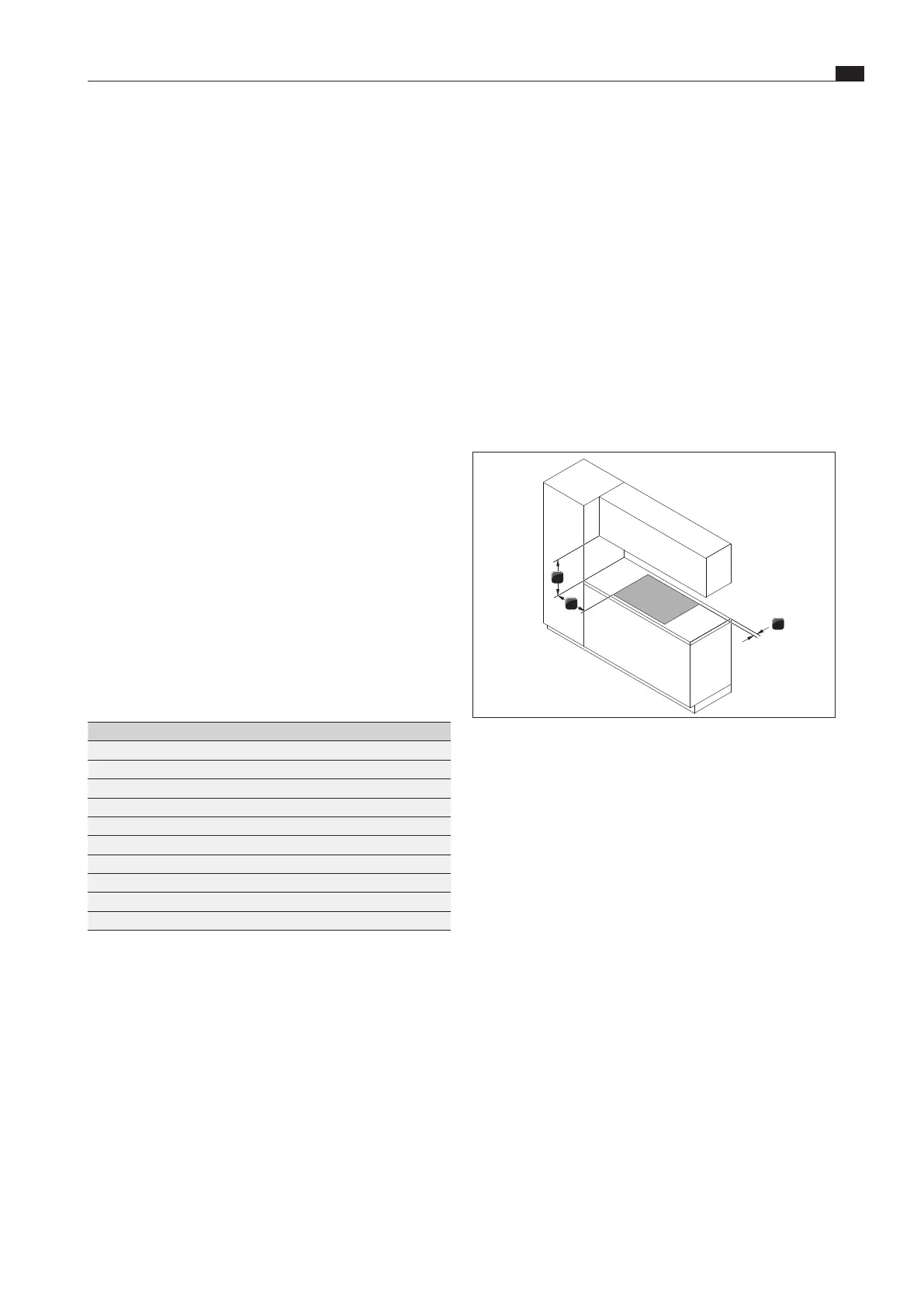

Fig. 5.1 Minimum distance
[1] Rear minimum clearance of 50mm between the worktop cut-
out and the rear edge of the worktop.
[2] Minimum clearance of 300mm from the left and right of the
worktop cut-out to the adjacent cabinet or wall.
[3] Minimum clearance of 600mm between the worktop and the
wall unit. A minimum clearance of 1000mm is recommended
for ergonomic reasons.
X
Observe all safety and warning information
(see the “Safety” chapter).
X
Follow the enclosed manufacturer’s information.
i
The power supply cable must be provided by the customer.
i
The appliance must not be installed above cooling devices,
dishwashers, stoves, ovens, washing machines or dryers.
i
The contact surface of the worktops and wall sealing
strips must be made of a heat-resistant material (up to
approx. 100°C).
i
Worktop cut-outs must be moisture-sealed using suitable
means and, where necessary, fitted with a thermal
insulator.
i
The integrated cooktop extractor must not be used with
other cooktops.
i
To ensure that the cooktops perform optimally at all times,
there must be sufficient ventilation beneath the cooktops.
i
If cable protection (false floor) is planned beneath the
appliance, this must be fitted so it does not obstruct
ventilation.
5.1 Scope of delivery
Name Quantity
Induction cooktop with cooktop extractor 1
Air inlet nozzle 1
Stainless steel grease filter 1
BAKF activated charcoal filter 2
Telescopic pull-out 1
Installation clamps with screws 5
Sealing tape 1
Cable routing clips 3
Height adjustment plate set 1
Operating and installation instructions 1
Tab. 5.1 Scope of delivery
X
Make sure the delivery is complete and check it for damage.
X
If there are any missing or damaged parts, please notify the
BORA After Sales Service immediately.
X
Do not under any circumstances install parts which are damaged.
X
Dispose of transport packaging in the proper manner (see the
“Decommissioning, disassembly and disposal” chapter).
