Монтаж и пуск INGENIO COMPACT ИБП 10÷20 кВА
Installation and start-up of INGENIO COMPACT 10÷20 kVA
52 OMS90050 РЕД. / REV. A
3.3 POSITIONING AND INSTALLATION
The INGENIO COMPACT UPS 10÷20 kVA must be installed indoor, in a clean and dry room,
preferably without dust or humidity infiltrations. For the environmental conditions in the place of
installation, in compliance with the current legislation, please refer to the “Overall dimensions,
minimum distances from the walls and ventilation” section.
Special environmental conditions
It is necessary to implement specific protective measures in case of unusual
environmental conditions:
 harmful smoke, dust, abrasive dust;
 humidity, vapour, salt air, bad weather or dripping;
 explosive dust and gas mixture;
 extreme temperature variations;
 bad ventilation;
 conductive or radiant heat from other sources;
 fungus, insects, vermin.
3.3.1 Base plan, static load and weights

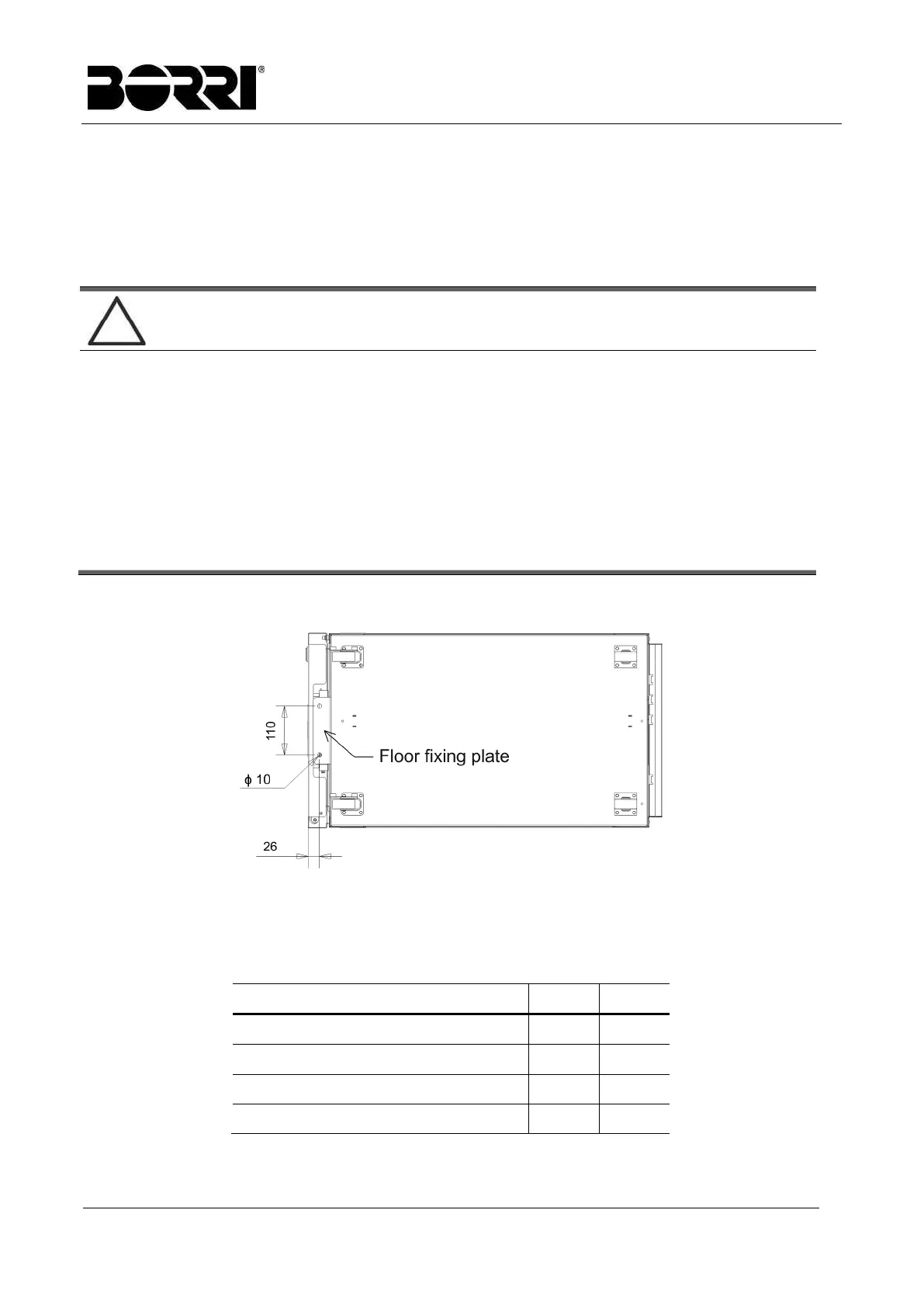

Picture 3 – Base plan
The supporting base of the UPS must be designed to carry the UPS weight and to ensure its
steady and safe support.
Its carrying capacity must be adequate to the static loads indicated in the table below.
Power (kVA) 10 20
Weight w/o batteries (kg) 74 76
Static load w/o batteries (kg/m
2
) 360 370
Weight with batteries (kg) 150 165
Static load with batteries (kg/m
2
) 720 800
