Монтаж и пуск INGENIO COMPACT ИБП 10÷20 кВА
Installation and start-up of INGENIO COMPACT 10÷20 kVA
OMS90050 РЕД. / REV.A
53
3.3.2 Overall dimensions, clearances and ventilation

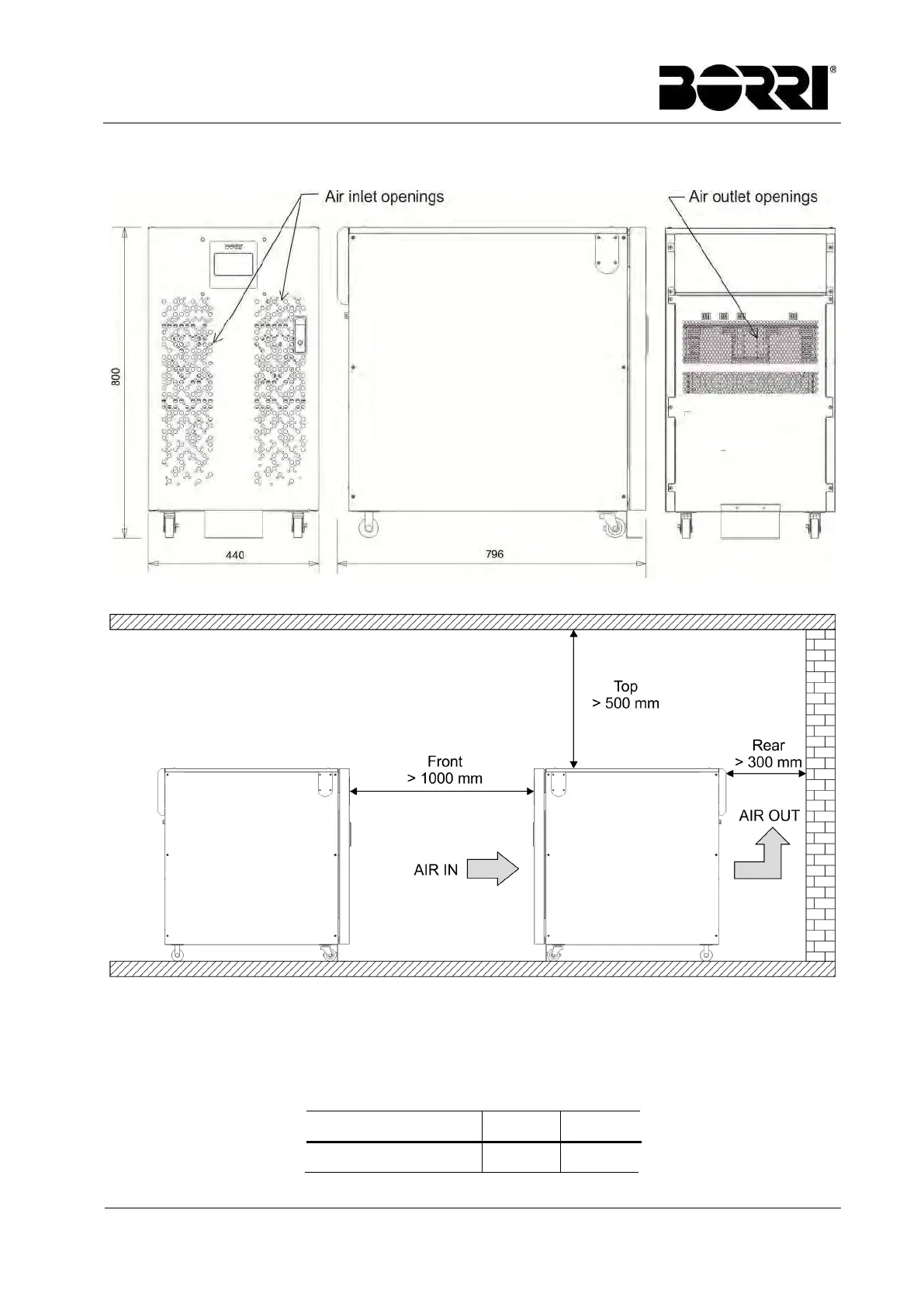

Picture 4 – Overall dimensions
Picture 5 – Minimum distances from the walls
The UPS must be so installed as to ensure its serviceability and to allow a correct air flow as
much as possible.
The table below shows the air volume required for an optimal ventilation and cooling of the
UPS.
UPS POWER (kVA) 10 20
Air volume (m
3
/h)
300 450
