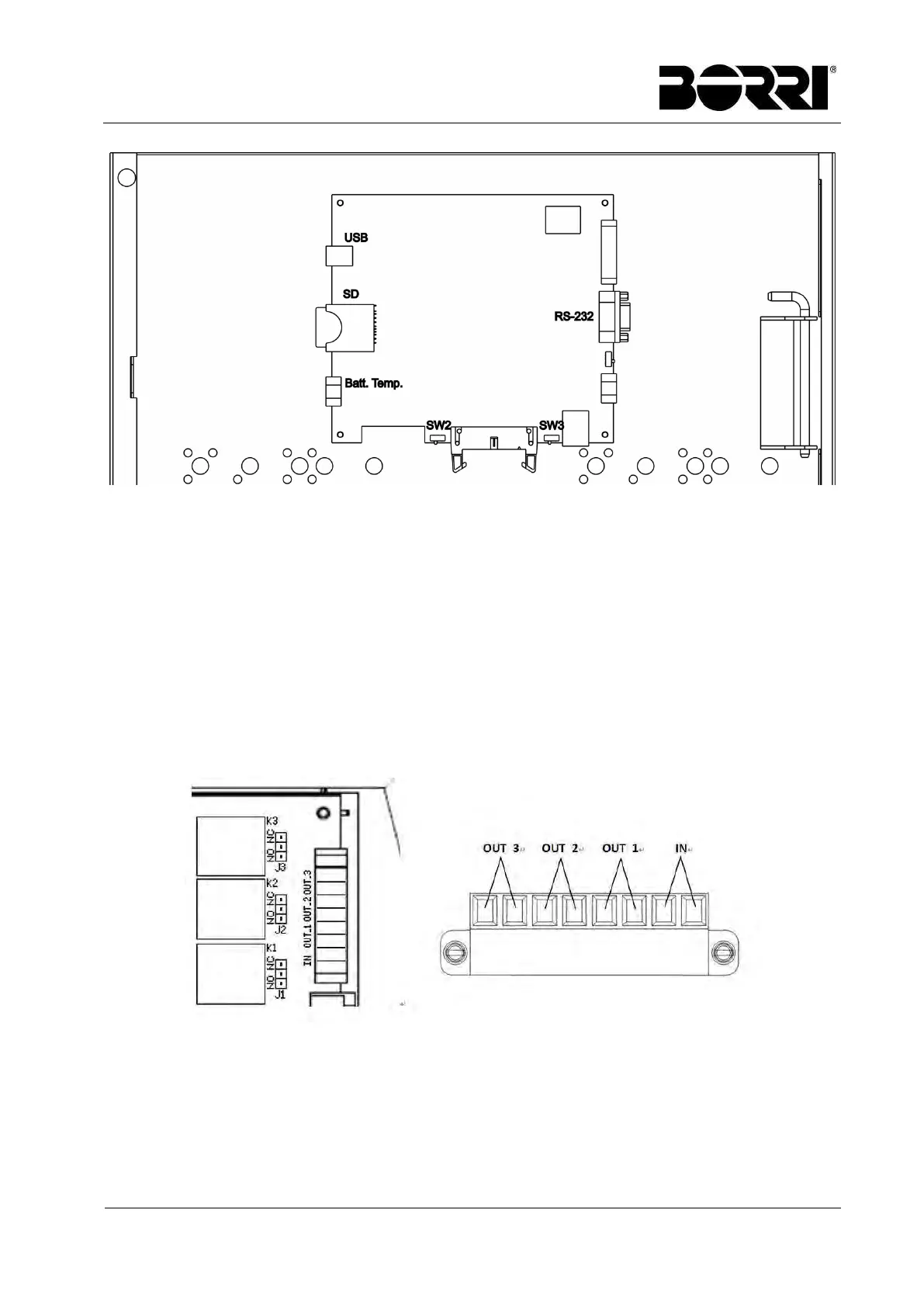

Picture 9 – Devices available on the display card
 USB: service only.
 Batt. Temp: external battery temperature connector .
 SW2: selection of the type of card installed in the slot2:
 Slot  relay card
 SNMP  SNMP card
 SW3: termination resistor for parallel communication.
 RS232: service only.
4.5.1 Output and input contacts
The UPS provides 3 output dry contacts and1 input contact.
Picture 10 – Output and input contacts
