Монтаж и пуск INGENIO COMPACT ИБП 10÷20 кВА
Installation and start-up of INGENIO COMPACT 10÷20 kVA
OMS90050 РЕД. / REV.A
69

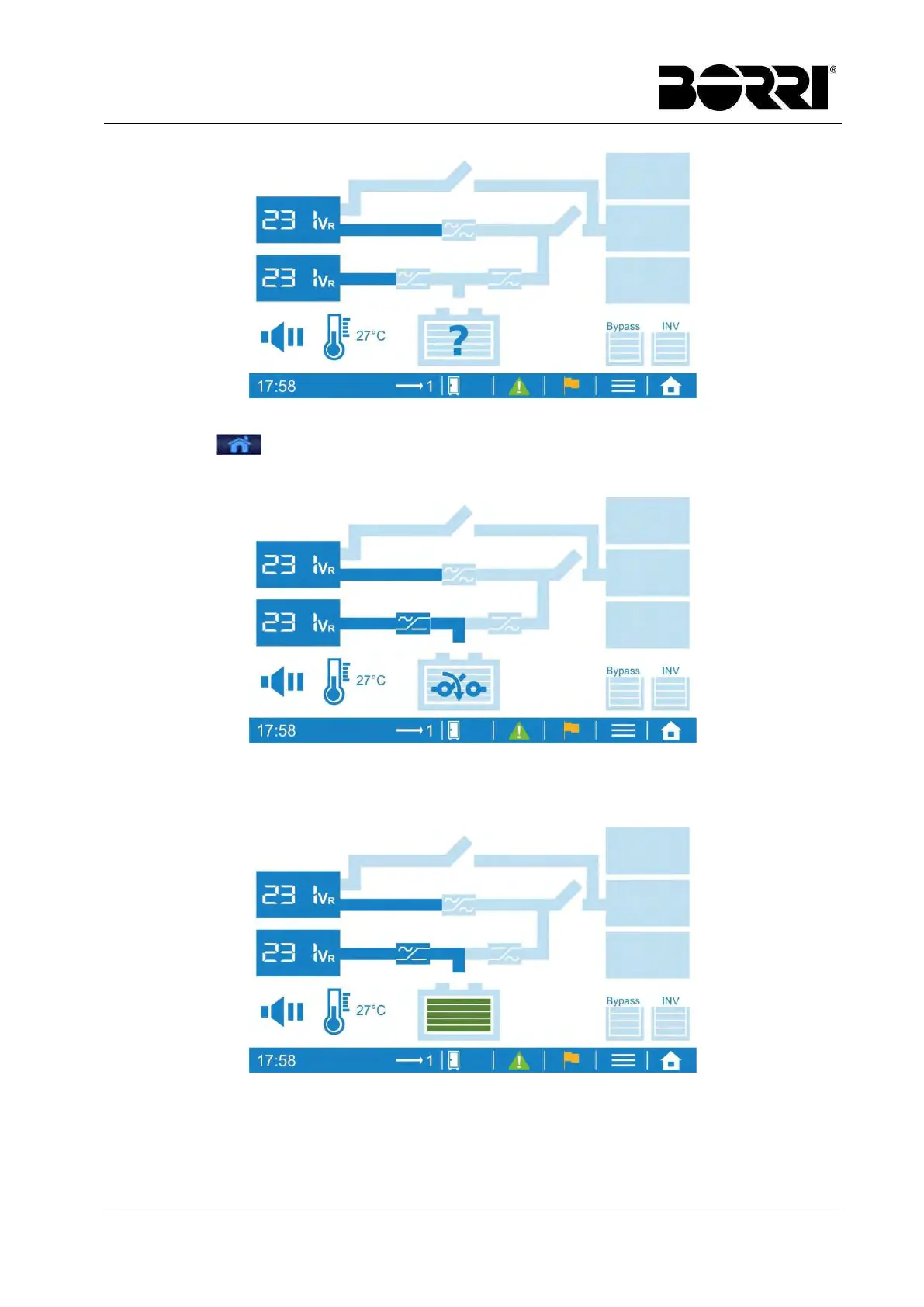

Picture 12 – UPS start-up
4) Select Command Operation Normal mode on the display.
5) Return to the mimic diagram page and wait until the rectifier is started.
Picture 13 – Rectifier start-up
6) As the rectifier is completely started it will be possible to close the battery fuse (or the
external battery isolator).
Picture 14 – Battery connection
7) As the battery is connected the inverter will start.
