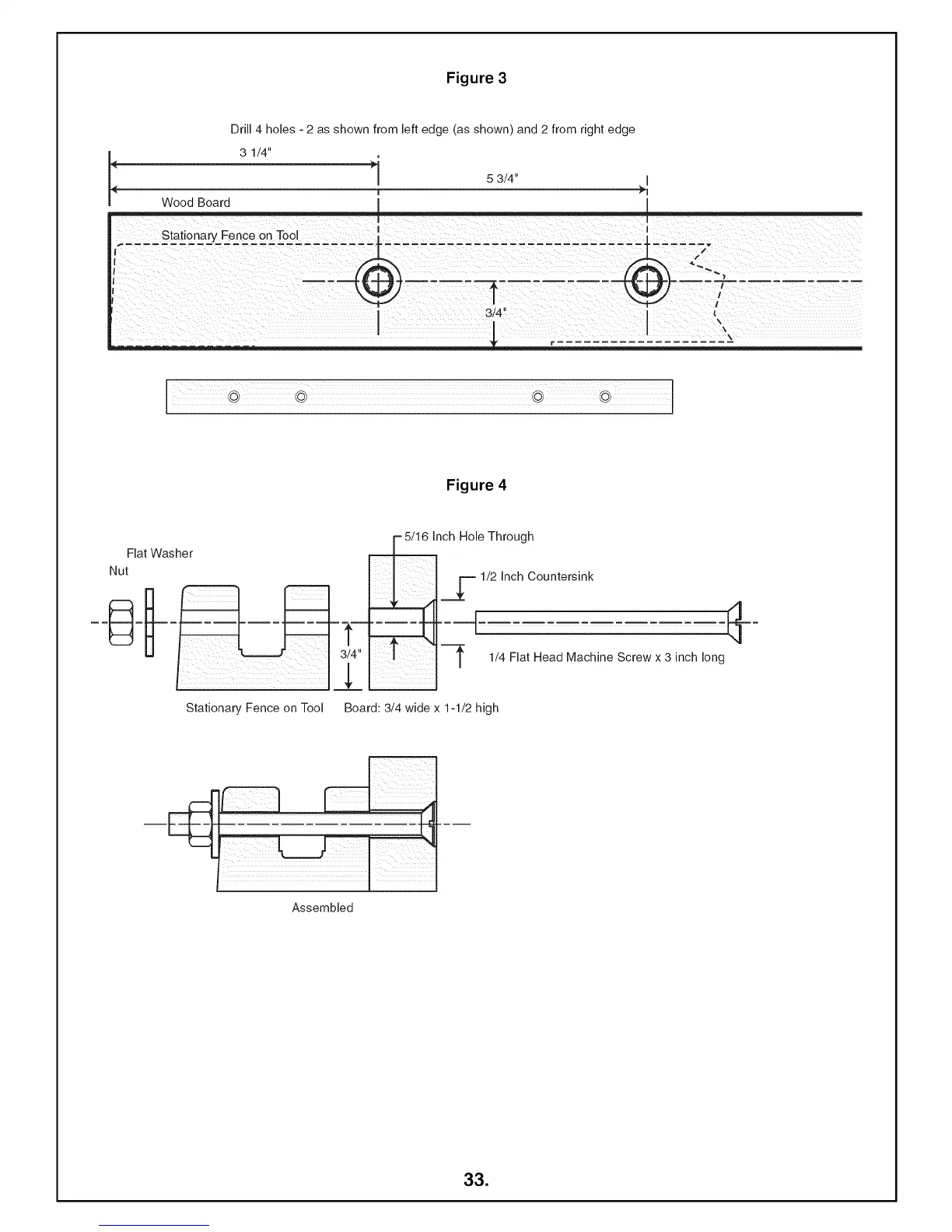

Figure 3
Drill 4 holes - 2 as shown from left edge (as shown) and 2 from right edge
l 3 1/4" ,
Wood Board _ 5 3/4" _,
Stationary Fence on Tool
3/4" _
\
Figure 4
Flat Washer
Nut
Hole Through
1/2 Inch Countersink
. . _-
--f 1/4 Flat Head Machine Screw x 3 inch long
Stationary Fence on Tool Board: 3/4 wide x 1-1/2 high
Assembled
