ACS 653, ACS 663 Service Manual
SP00D00624 2021-04-08Robert Bosch GmbH
11

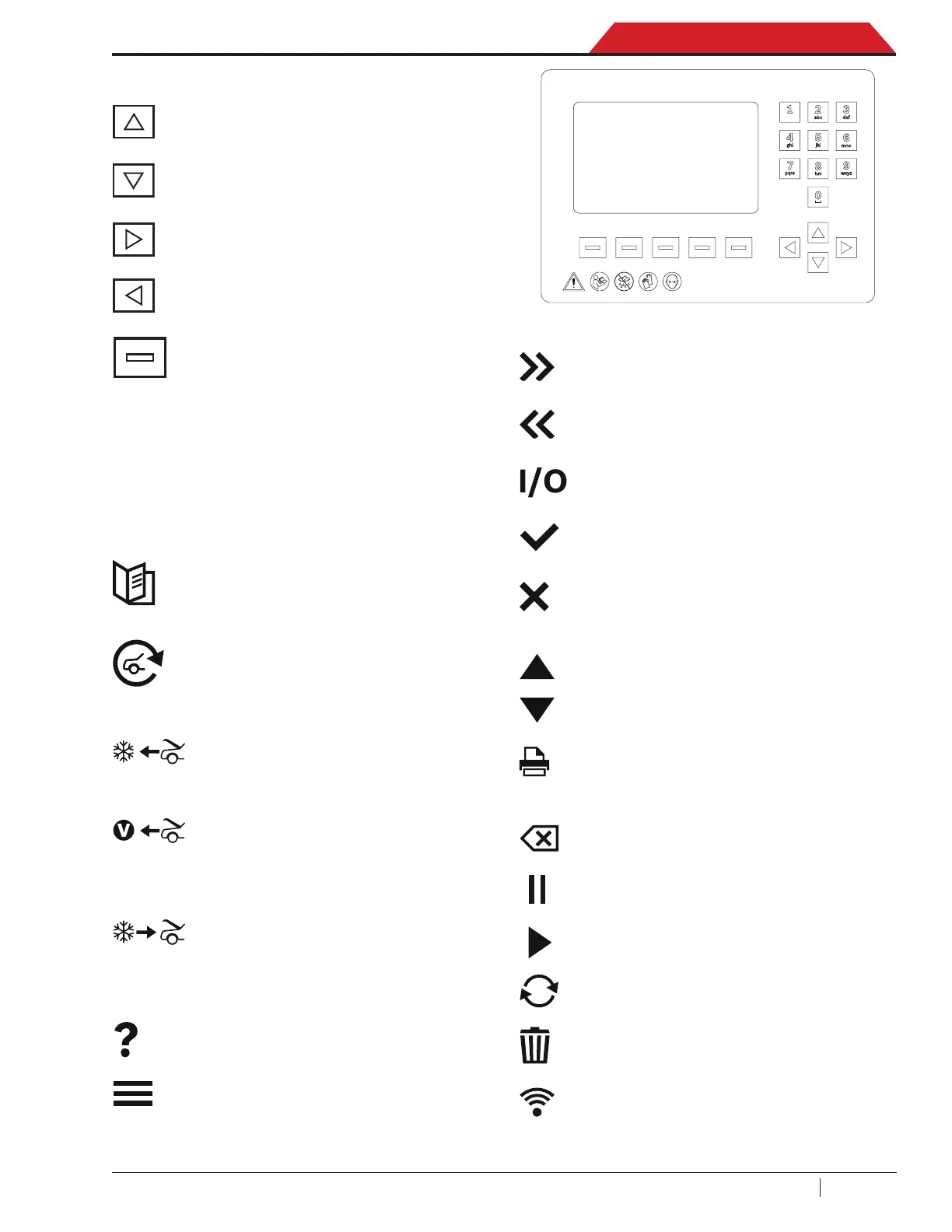

Introduction
moves selection of a
menu item to the previous item.
moves selection of
a menu item to the following item.
scrolls to next
screen.
scrolls to previous
screen.
(function keys)
to select the functions shown on
display (bottom icons).
Thecan be used to
enter letters, numbers and special
characters in the input boxes.
0...9
A...Z
supplies information
regarding charge capacity by vehicle
model.
activates a menu that
helps the user set up an automatic
recover / vacuum / leak test / charge
sequence.
activates the sequence
to recover refrigerant from the vehicle
A/C system.
activates the sequence
that pulls a deep vacuum on the
vehicle A/C system to remove air
and moisture.
activates the sequence
that charges the vehicle A/C system
with a programmed amount of
refrigerant.
displays information related to
the current display.
accesses additional functions
and parameters.
to move to the next screen
or step.
to return to the previous
screen or step.
to enable or disable the
selected function.
to confirm, proceed or save
settings.
to cancel the operation and
return to the previous function or the
Main menu.
to move menu selection upward.
to move menu selection
downward.
to perform a print (only for
variants with printer).
to erase the character
to the left of the cursor.
to pause a process.
to resume a paused process.
to repeat the last step.
to delete a selected entry
from the memory of the machine.
indicates that the WiFi
connection is enabled.
