8 Package
5

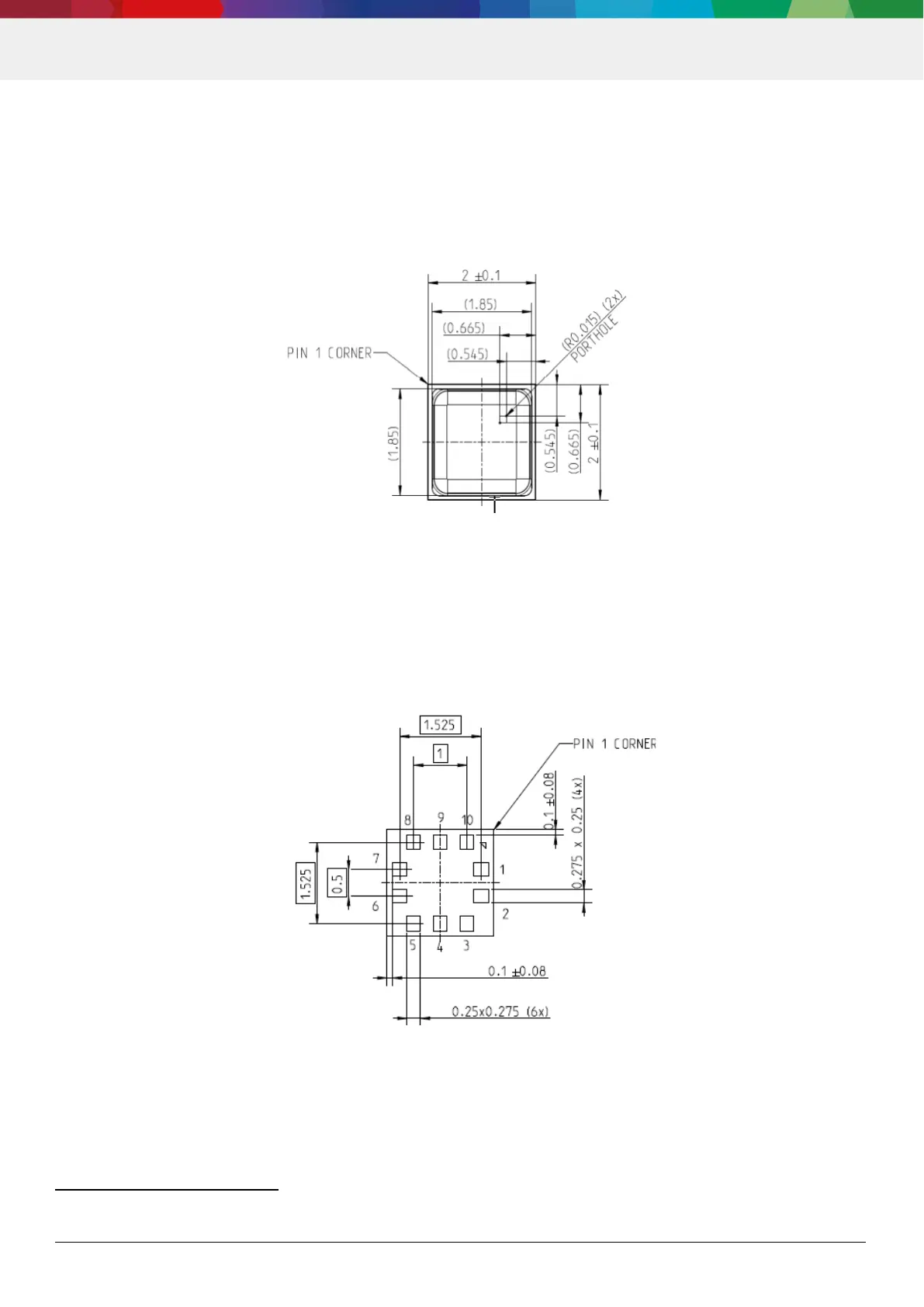

8.1 BMP581 Package Outline Dimensions
8.1.1 Top View
Figure 24: BMP581 top view
8.1.2 Bottom View
Figure 25: BMP581 bottom view
5
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS, TOLERANCES ±0.05
