8.7 Tape and reel specification
8.7.1 Dimensions

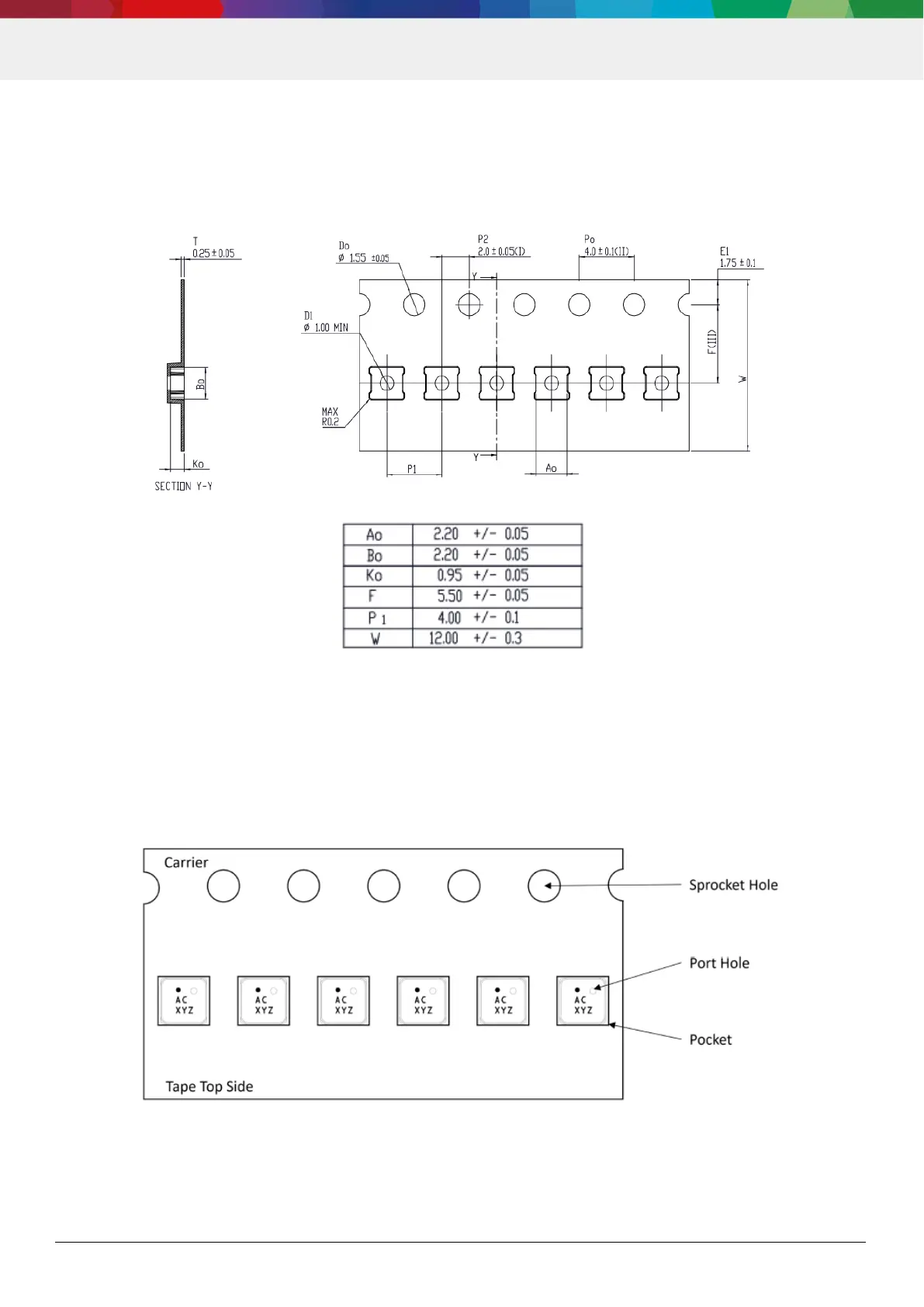

Figure 27: Tape and Reel dimensions
Quantity per reel: 10 kpcs.
8.7.2 Orientation within the reel
The orientation of the sensor placement inside the tape on reel can be found below.
Figure 28: Orientation within tape
