Configuration
FlexibleAutomation
2−22
2.1.12.1 Central Expansion
.Note,
The GG300−K and GG301−K Basic Units allow for central expansions. Further information is available on re
quest.

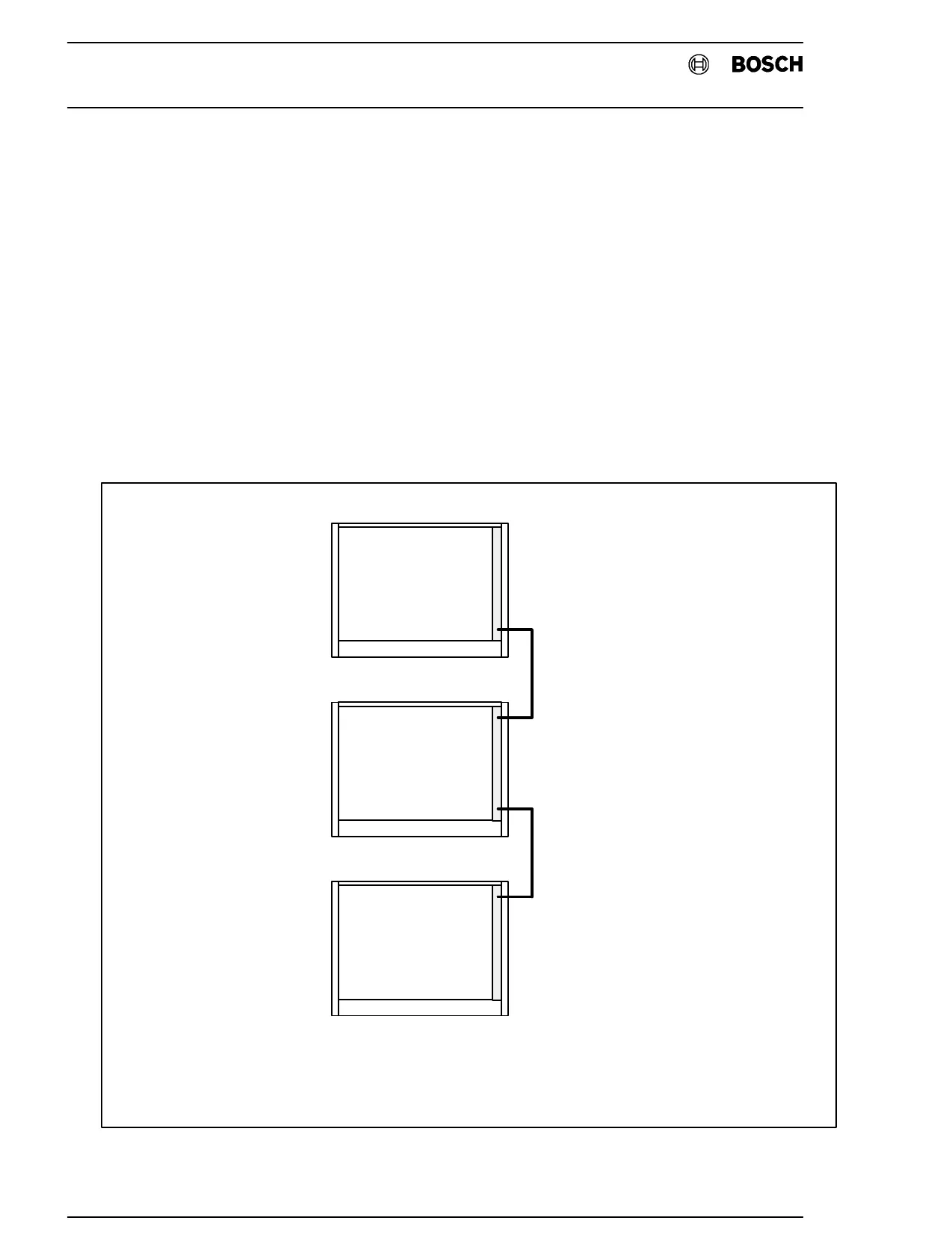

A basic station as a result of central expansion includes one basic unit and a maxi
mum of two expansion units. The illustration below shows the arrangement of the
individual units and of the AG/Z Central Expansion Unit plus the connections re
quired in this configuration made up of one GG300/301 Basic Unit and two EG300
Expansion Units.
AG/Z
AG/Z
AG/Z
GG300/301
EG300
EG300
0.55mConnectingcable
GS300/301BasicStation
Fig.2−11Central Expansion
