2.1.12.2 Parallel Expansion
Parallel expansion includes one basic station (1 basic unit and 2 expansion units)
and one expansion station (3 EG300 Expansion Units in series) in a parallel configu
ration.

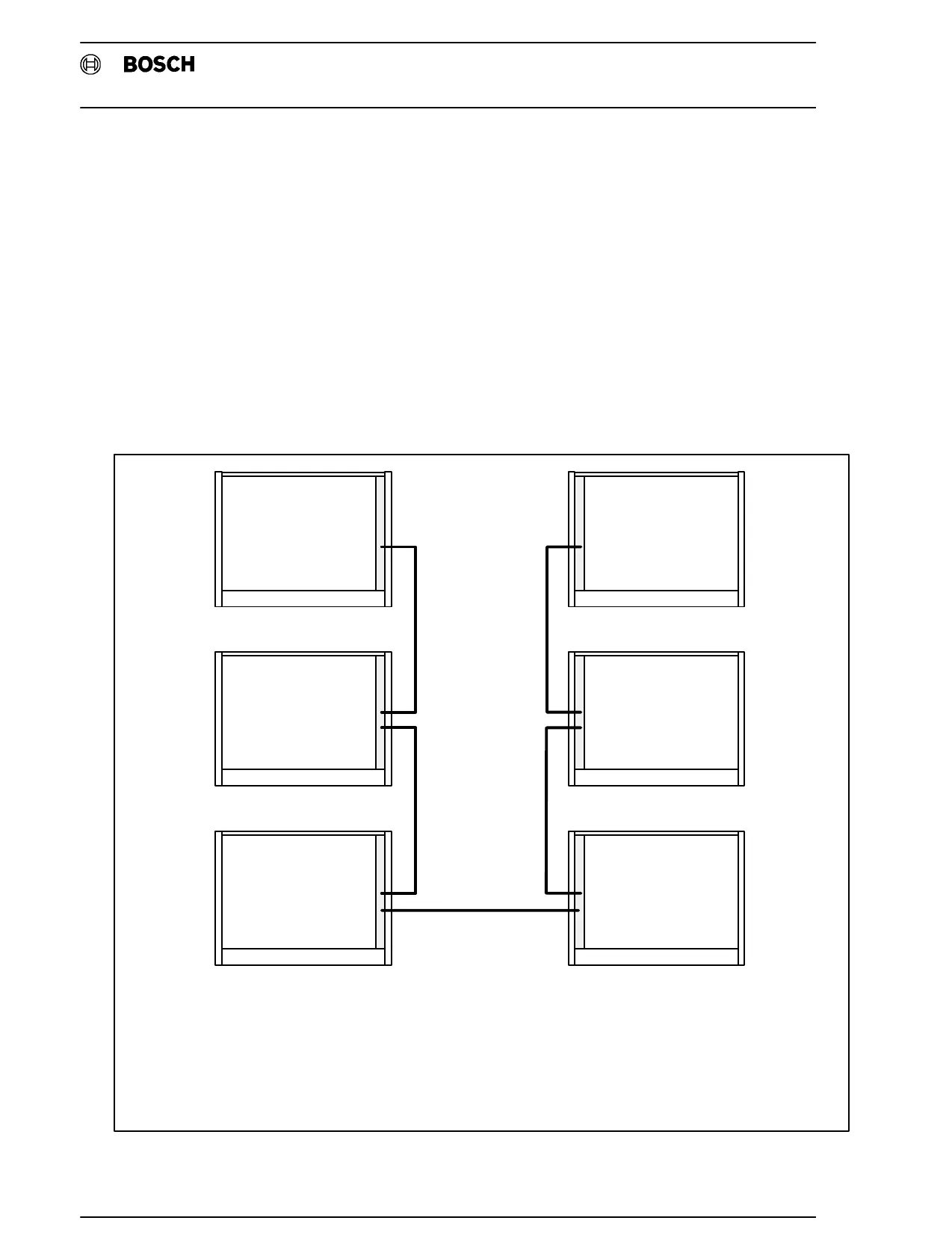

The illustration below shows the arrangement of the individual units, the AG/P Paral
lel Expansion Unit, the AG/Z Central Expansion Unit and the connections required.
The AG/P should be installed in the basic unit. The AG/Z Central Expansion Modules
are installed in the EG300 Expansion Units.
AG/Z
AG/Z
AG/P
GG300/301
EG300
EG300
AG/Z
AG/Z
AG/Z
EG300
EG300
EG300
B
A
A
A−Theconnectingcableis0.55m.
B−Theparallelconnectingcableis1.8m.

A
A
GS300/301BasicStation EWS300ExpansionStation
Fig.2−12Parallel Expansion
