Principle of area monitoring with FCS-320 series Aspirating
Smoke Detectors
1 Room pipe system
2 Double-floor pipe system
Area monitoring with air-conditioning
Area monitoring occurs
– In rooms with air-conditioning for server rooms etc.
– In ventilation ducts
– In double floors, false ceilings
– In IT rooms, e-distributor rooms, transformer cells
– On air-conditioning units (see figure below) or
– In the bypass in air-conditioning ducts.
FAS / FCS
FAS / FCS
FAS / FCS
1
2

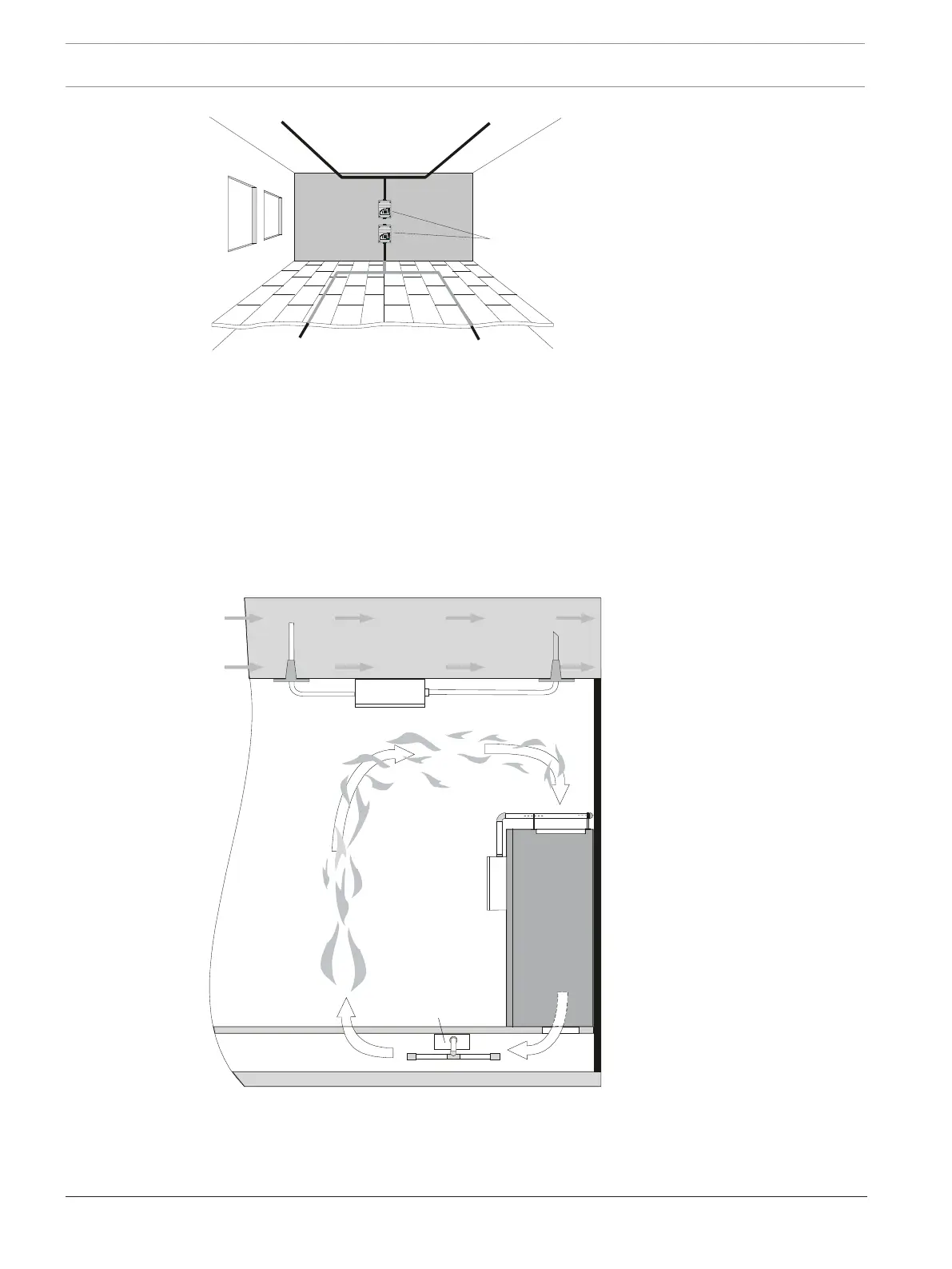

Monitoring options for an air-conditioning unit or an air-
conditioning duct (depiction of principle)
1 Air-conditioning duct
2 Air-conditioning unit
The FCS-320 Aspirating Smoke Detector can be used for early fire detection in areas with
special-purpose air conditioning.
