Aspirating Smoke Detector Technical Specifications | en 17
Bosch Sicherheitssysteme GmbH Operation Guide 2018.04 | 2.0 | F.01U.130.926
3.5.4 FCS-320-TT1/FCS-320-TT2 displays
i
1
2
3
4
5
6
7
8
9
10
FAS-420-TT1 / FCS-320-TT1
FAS-420-TT2 / FCS-320-TT2
i
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
12

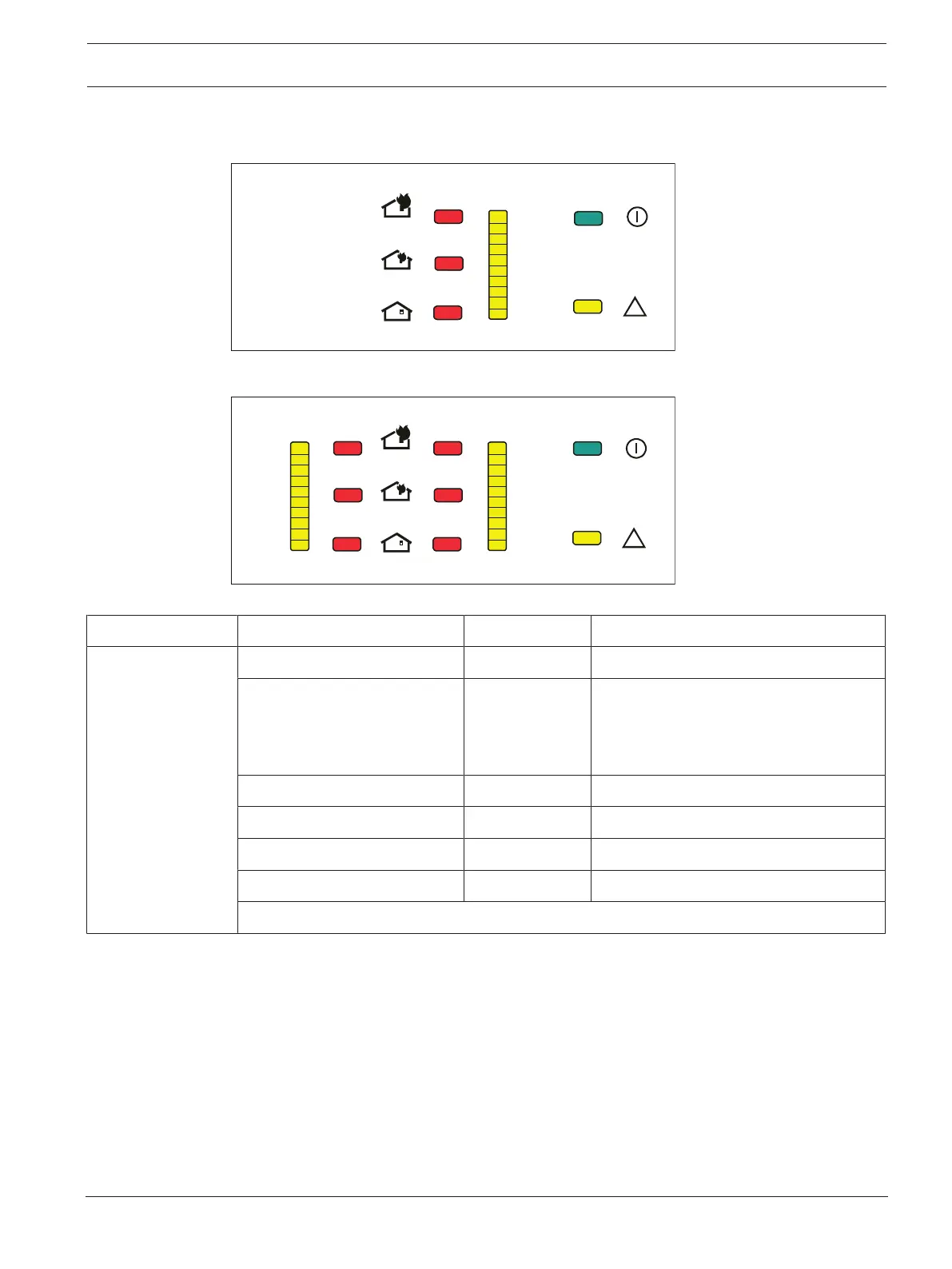

Figure3.3: FAS‑420‑TT1/TT2, FCS-320-TT1/TT2 displays
FCS-320‑TT Display LED
1
Explanation
Operation Green Operation display
Fault Yellow Fault
in the pipe system
of a detector module
caused by fan failure
Main alarm Red 100% smoke level
Pre-alarm
1
Red 66% smoke level
Info alarm
1
Red 33% smoke level
Smoke level display 1 to 10
1
10 yellow LEDs Current smoke level
1
All displays doubled on the FCS-320-TT2
