Bosch FCS-320-TP2 - FCS-320 Series Connections

Aspirating Smoke Detector Technical Specifications | en 15
Bosch Sicherheitssysteme GmbH Operation Guide 2018.04 | 2.0 | F.01U.130.926
Notice!
Only DM-TP-50(80), DM‑TP‑10(25) and DM-TP-01(05) detector modules certified to VdS may
be used in the FCS-320 series. The detector modules must be ordered separately.
See also
– FAS-ASD-DIAG Diagnostic Software, page 18
– Remote indictors, page 18
– Device mounting, page 19
– Ceiling Lead-through Adapter, page 22
– Water Separator for Humid Areas, page 24
– Detonation Safety Barrier for Potentially Explosive Areas, page 25
3.5.2 FCS-320 series connections
1
2
3
1
4
5
FAS -420 series
FAS -420 series
FAS / FCS

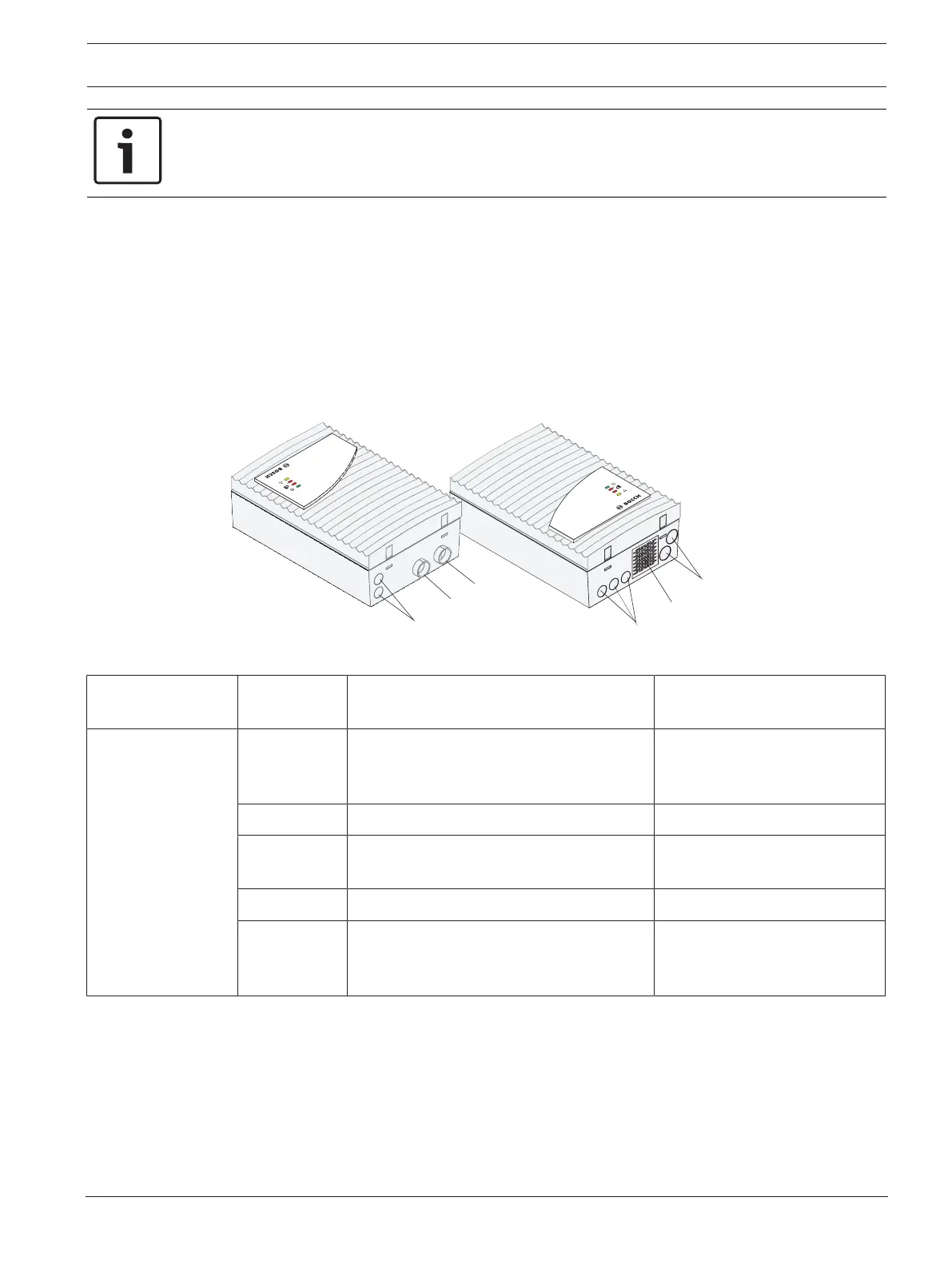

Figure3.1: FCS-320 connections (see table on next page for explanations)
Position in
figure
Function Explanation
FCS-320 series 1 Cable bushing for connection of fire panel
and additional power supply (input/
output)
1 x M20, for cable diameters of
8-12mm
2 Pipe system 1 connection For Ø 25mm pipe system
3 Pipe system 2 connection
(for FCS-320-TP2 and FCS-320-TT2 only)
For Ø 25mm pipe system
4 Connection for air-return pipe
5 Cable bushing for connection of fire panel
and additional power supply (input/
output)
2 x M25 for cable diameters of
9-14mm (expandable to 14-
18mm)
