3.5.3 FCS-320-TP1/FCS-320-TP2 displays
FAS-420-TP1 / FCS-320-TP1
FAS-420-TP2 / FCS-320-TP2
1
2

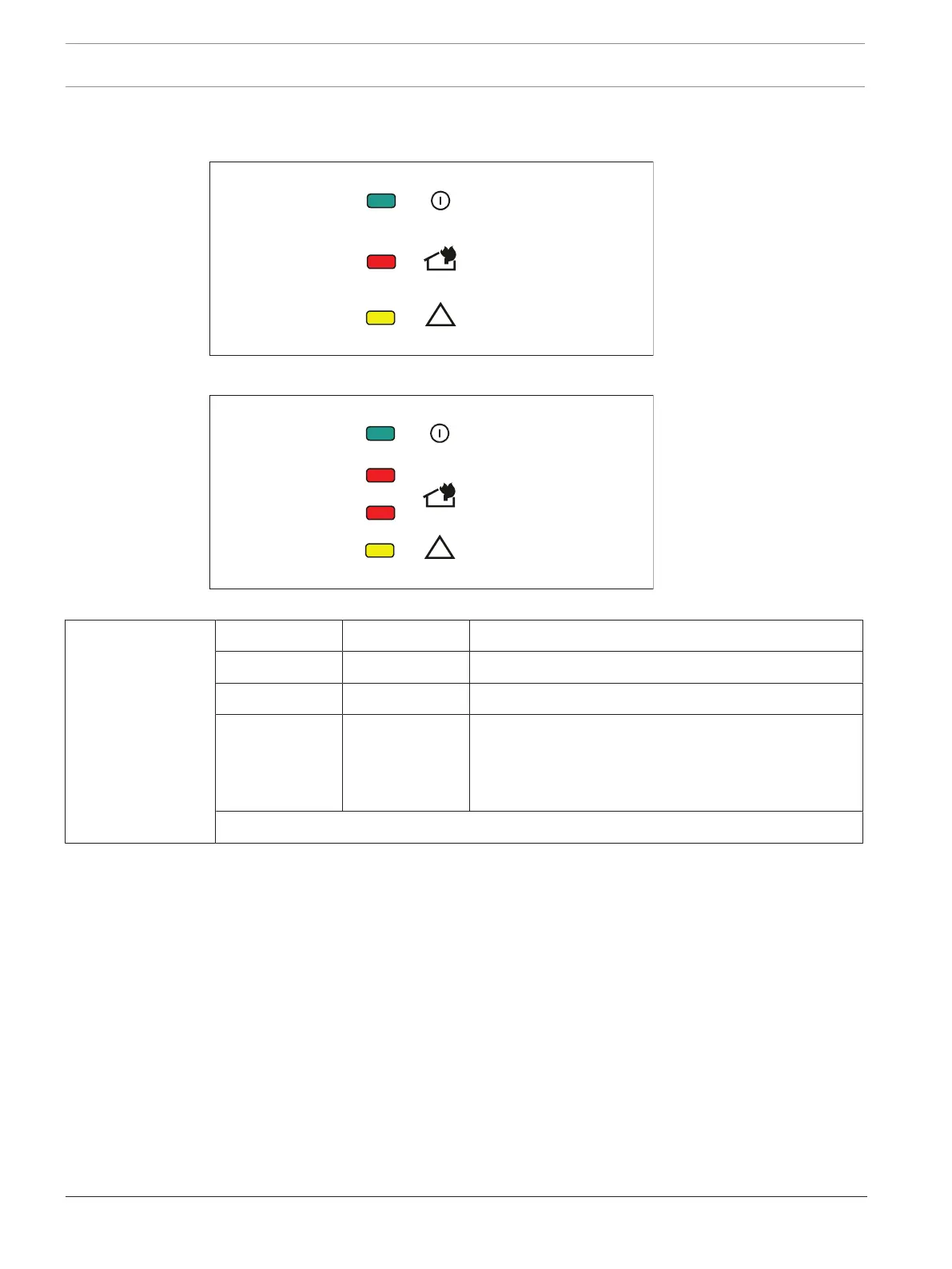

Figure3.2: FAS‑420‑TP1/TP2, FCS‑320‑TP1/TP2 displays
FCS-320-TP Display LED Explanation
Operation Green Operation display
Alarm
1
Red Alarm indication
Fault Yellow Fault
– in the pipe system
– of a detector module
– caused by fan failure
1
Two alarm displays on the FCS-320-TP2
