Aspirating Smoke Detector Installing the Aspirating Smoke Detector | en 81
Bosch Sicherheitssysteme GmbH Operation Guide 2018.04 | 2.0 | F.01U.130.926
Aspiration from below
If the air-return pipe is directed upwards, it must be guaranteed that no foreign bodies or
dripping water can penetrate the air return. You should therefore use a short, downward
angled pipe.
Mounting type MT-1
The aspirating smoke detector is either bolted directly to the wall provided for installation
using the rear panel or installed by means of unit mounting type MT-1, e.g. onto frames.
1
2
FAS
-420 series
FAS-42 0
series

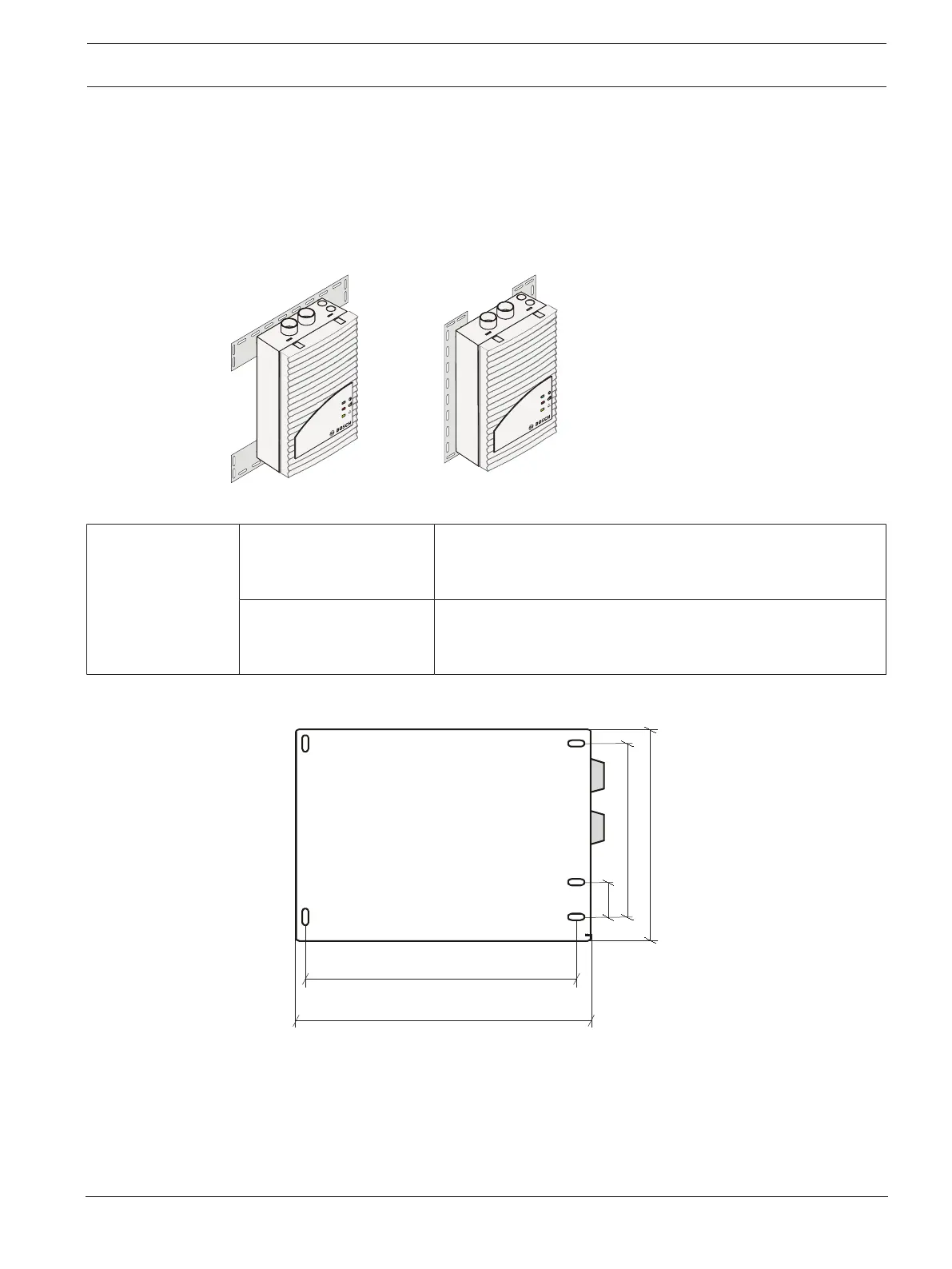

Installing on mounting type MT-1
1 Horizontal installation
2 Vertical installation
Installation material FCS-320 Cylinder or flat head screws
– Thread diameter: max. 6mm
– Head diameter: 10mm
Mounting (type MT-1) Cylinder or flat head screws
– Thread diameter: max. 4mm
– Head diameter: 5 to 7mm
Bore distances
The distances between the bores are shown in the figures below (all measurements in mm).
30
255
160 200
292
Figure5.2: Bore distances of FCS-320 without mounting
