Notice!
The indicator LEDs are positioned behind the semi-transparent cover. For this reason, the
LEDs are only visible when ON.
i
Notice!
When in operation, the radiators might feel warm to the touch. This is the expected behavior,
and does not indicate a radiator fault or malfunction.

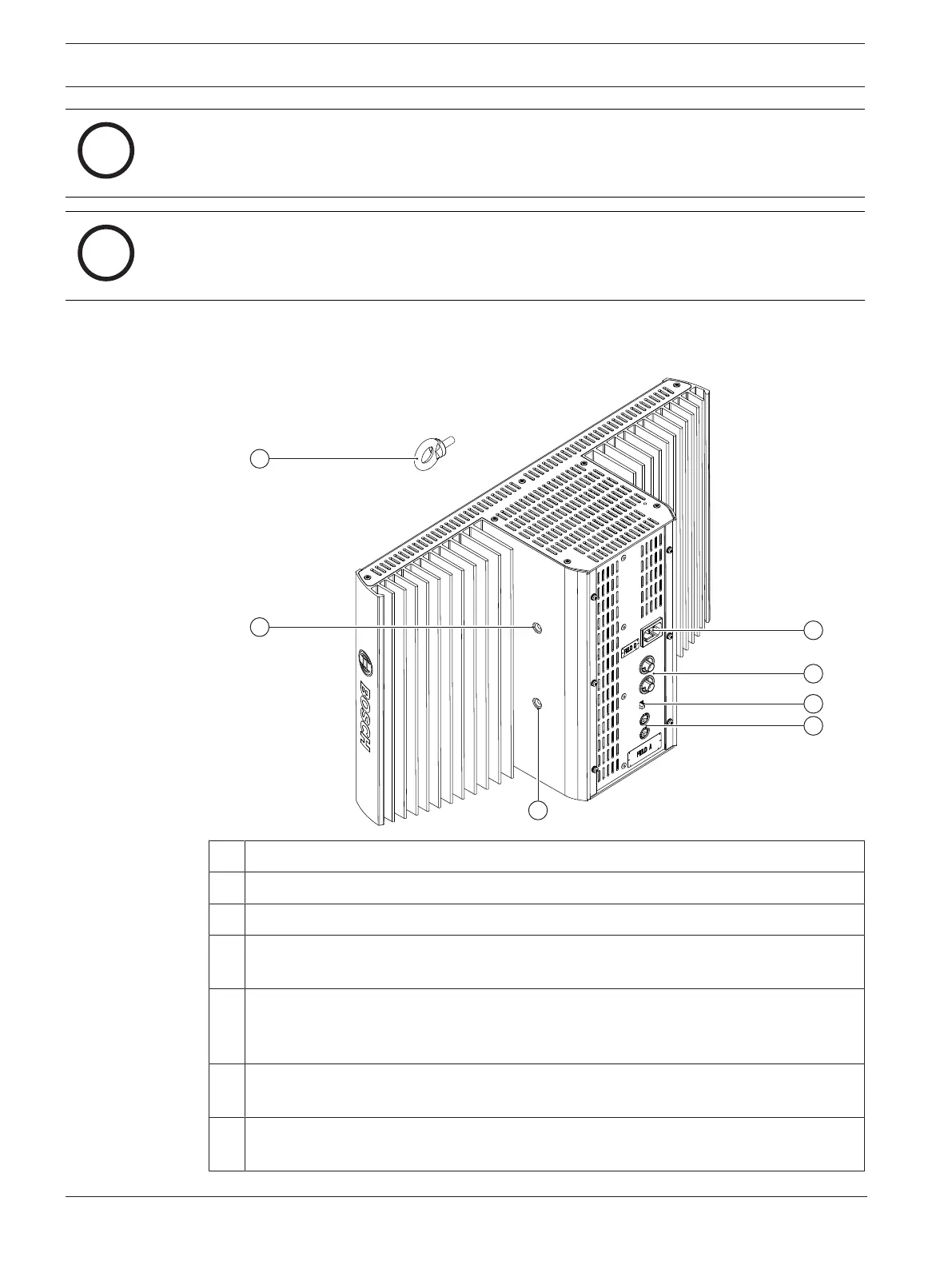

Side and rear view
3
2
1
4
5
6
7
1 Safety eye: Used to mount a safety cord for extra security.
2 Safety eyehole: Tapped hole to mount the safety eye.
3 Bracket hole: Tapped hole to mount the suspension bracket.
4 Mains input: Male Euro mains connector. The radiators selection automatically the
mains voltage.
5 IR signal input/loop-through: Two HF BNC connectors for connecting the radiator to
the transmitter and for loop-through connection to other radiators. A built-in switch in
the BNC connectors achieves automatic cable termination.
6 Output power selection switch: Switch the radiators between full and half-power
operation.
7 Delay compensation switches: Two switches in the 10-position to compensate for
differences in cable lengths to the radiators.
