5 Installation
5.1 Transmitter OMNEO
You can mount the transmitter on a table or on a 19-inch rack:
– Four feet are supplied for table-top use.
– Two mounting brackets are supplied for rack mounting.

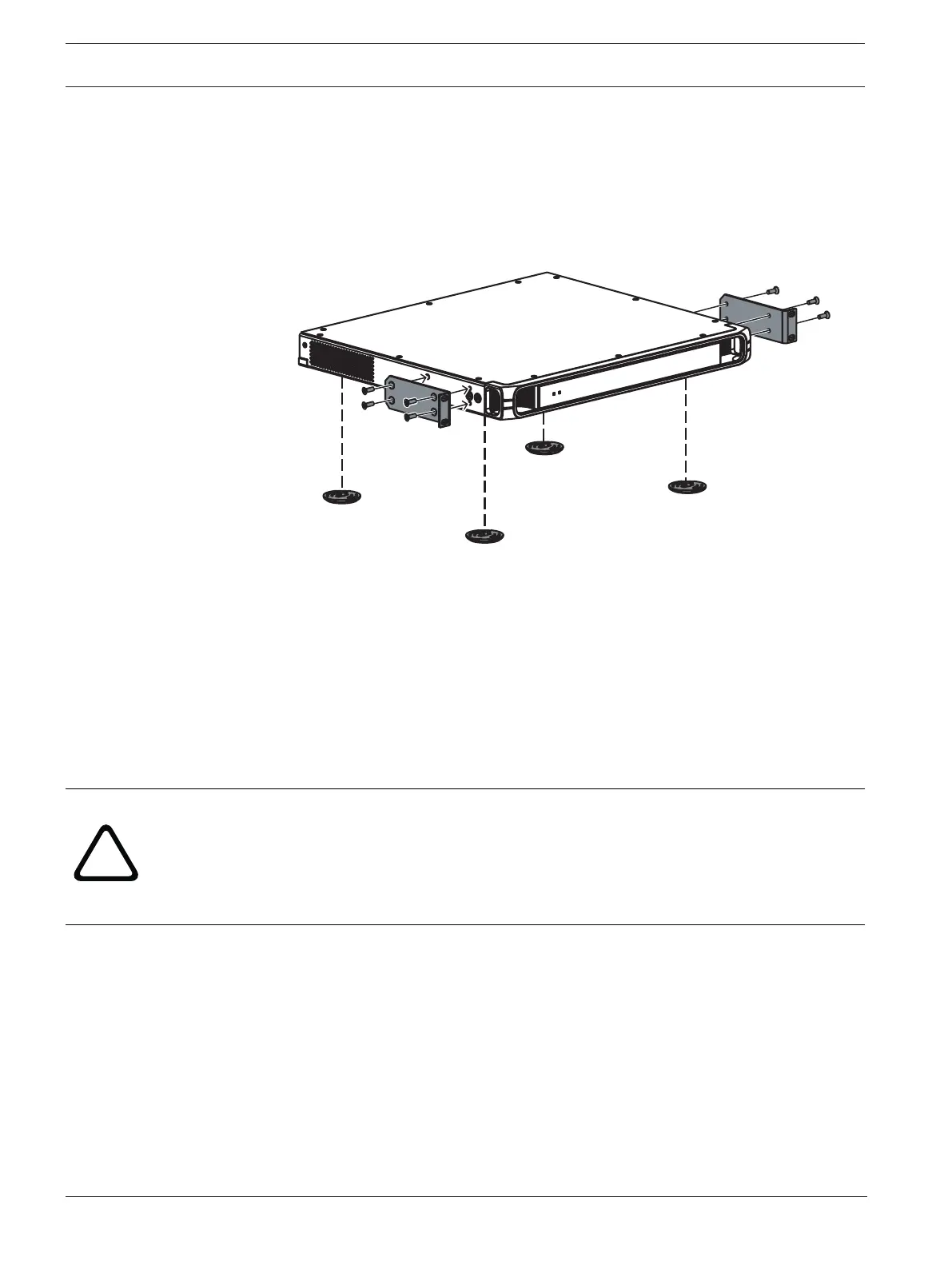

Figure5.1: INT-TXO with mounting brackets and table-top feet
5.2 Medium and high power radiators
With the suspension bracket supplied with the radiator, radiators in permanent installations
can be:
– Fixed to a wall
– Hung under a ceiling or balcony, or
– Secured to any sturdy material.
You can adjust the mounting angle for optimal coverage. The bracket LBB3414/00 is required
for wall-mounting. In non-permanent installations, you can use a floor stand.
!
Warning!
Make sure that the radiator never becomes too hot.
When you install the radiator in the ceiling, keep at least 1m
3
of free space around the back
of the radiator. Make sure that there is a good airflow in this free space.
When determining the position of the radiator, always make sure that the natural airflow is
not obstructed. Keep plenty of space around the radiator.
Follow these instructions to mount a radiator:
1. Attach the mounting plate to the suspension bracket. See Attach mounting plate to the
suspension bracket, page 33
2. Attach the suspension bracket to the radiator. See Attach the suspension bracket, page
34
3. Do one of the following:
– Mount the radiator on a floor stand. See Mount radiator on a floor stand, page 35
– Mount the radiator on a wall. See Mount radiator on a ceiling, page 36
– Mount the radiator on the ceiling. See Attach mounting plate to the suspension
bracket, page 33
